B & C PROFESSIONAL COMPONENTS |
DE750TN - 2" HIGH FREQUENCY DRIVER |
THE B&C DE750TN HAS STRONG CLEAN MIDS WITH NICE HIGH AND GOOD POWER HANDLING! |
|
|
DE750TN |
8 Ohm Version Item Price: $349.89 |
|
16 Ohm Version Item Price: $349.89 |
SPEAKER
MODEL |
DE750TN |
SPECIFICATIONS |
|
Throat Diameter |
2" |
Impedance |
8
or 16 ohms |
RMS
Power Rating |
110
Watts |
Program Power | 220 Watts |
Frequency
Response |
500Hz
- 18kHz |
Recommended Crossover | 800Hz |
Sensitivity
(1W/1m) |
108.5dB |
Voice
Coil Diameter |
3" / 75mm |
Winding Material | Aluminum |
Inductance | 0.14mH |
Diaphragm Material | Titanium |
Flux Density | 1.9T |
MOUNTING INFORMATION |
|
Overall
Diameter |
7.1" / 180mm |
Mounting Holes | (4)M6 holes on 90°- 4" Dia. |
Depth | 3.4" / 87mm |
Net Weight | 13.9 lbs./ 6.3 kg. |

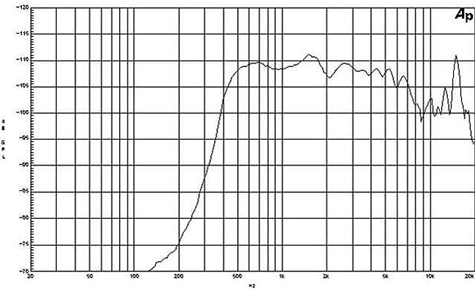

FREQUENCY RESPONSE |
|
|
|
IMPEDANCE CURVE |
|
|
