B&C DE880TN is a lightweight 1.4" neodymium high frequency compression driver- B&C DE880TN neodymium high frequency drivers - B&C 1.4" lightweight neodymium high power high frequency driver for speaker systems. B&C DE880TN neodymium high frequency drivers

B & C PROFESSIONAL COMPONENTS

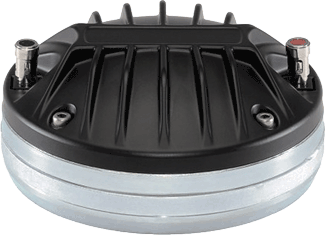

DE880TN - 1.4" NEODYMIUM HIGH POWER HIGH FREQUENCY DRIVER

NEW B&C DE880TN IS A 1.4" HIGH FREQUENCY COMPRESSION DRIVER
COMPLETELY REDESIGNED BENT EDGE VOICE COIL FORMER, NEW DOME, SURROUND & PHASE PLUG
HIGH POWER HANDLING OF 110 WATTS AES STANDARD & 220 WATTS PROGRAM
FEATURES A COPPER SHORTING RING FOR A FLATTER RESPONSE & LOWER DISTORTION
LIGHTWEIGHT NEODYMIUM MAGNET & TITANIUM DIAPHRAGM
THE B&C DE880TN HIGH FREQUENCY DRIVER IS OPTIMIZED FOR THE HIGHEST QUALITY SPEAKER SYSTEMS IN SOUND REINFORCEMENT SYSTEMS, STAGE MONITORS, FRONT OF HOUSE SYSTEMS, CONCERT, THEATER, ETC.
AVAILABLE IN 8 OR 16 OHMS

COPPER SHORTING RING FOR LOWER DISTORTION, LIGHTWEIGHT NEODYMIUM MAGNET, SUPERB CLARITY & POWER HANDLING!
	DE880TN
	8 ohms Item Price: $386.49
	16 ohms Item Price: $386.49

SPEAKER MODEL	DE880TN
SPECIFICATIONS
Throat Diameter	1.4" / 36mm
Impedance	8 ohms
RMS Power Rating	110 Watts
Program Power	220 Watts
Frequency Response	500Hz - 18kHz
Recommended Crossover	1.2KHz
Sensitivity (1W/1m)	108dB
Voice Coil Diameter	3" / 75mm
Winding Material	Aluminum
Shorting Ring	Copper
Inductance	0.1mH
Diaphragm Material	Titanium
Flux Density	1.85T
MOUNTING INFORMATION
Overall Diameter	4.9" / 124mm
Mounting Holes	(4)M6 holes on 90°- 4" Dia.
Depth	2.13" / 54mm
Net Weight	4.6 lbs./ 2.1 kg.

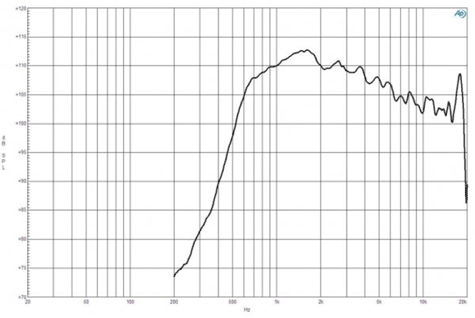

FREQUENCY RESPONSE GRAPH

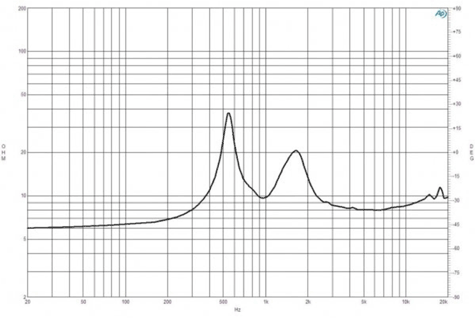

IMPEDANCE GRAPH
