LIGHTWEIGHT NEODYMIUM MAGNET, SUPERB CLARITY & POWER HANDLING!
DE985TN
Item Price: $418.80
|
B & C PROFESSIONAL COMPONENTS |
|

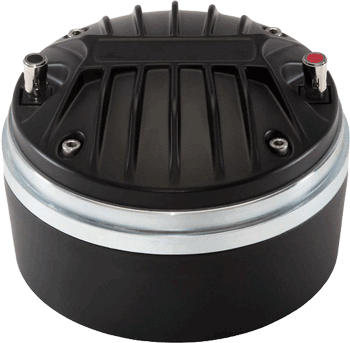

DE985TN - 2" NEODYMIUM HIGH POWER HIGH FREQUENCY DRIVER |
|
LIGHTWEIGHT NEODYMIUM MAGNET, SUPERB CLARITY & POWER HANDLING! |
|
|
|
DE985TN |
|
Item Price: $418.80 |
|
|
SPEAKER MODEL |
DE985TN |
|
SPECIFICATIONS |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8 ohms |
|
RMS Power Rating |
110 Watts |
| Program Power | 220 Watts |
|
Frequency Response |
500Hz - 18kHz |
| Recommended Frequency | 800Hz or higher |
| Recommended Crossover | 1.2KHz |
|
Sensitivity (1W/1m) |
108.5dB |
|
Voice Coil Diameter |
3" / 75mm |
| Winding Material | Aluminum |
| Shorting Ring | Copper |
| Inductance | 0.1mH |
| Diaphragm Material | Titanium |
| Flux Density | 2.05T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
5.2" / 132mm |
| Mounting Holes | (4)M6 holes on 90°- 4" Dia. |
| Depth | 3.44" / 87mm |
| Net Weight | 5.51 lbs./ 2.5 kg. |
|

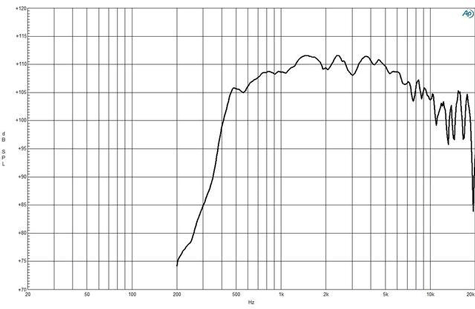

FREQUENCY RESPONSE GRAPH |
|
|
|
|
|

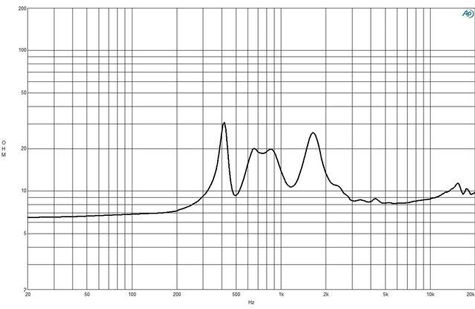

IMPEDANCE GRAPH |
|
|
|
|
