B&C DH450 HAS AN INCREASED DIAPHRAGM AREA & REDUCED INTERMODULAION DISTORTION!
DH450
Item Price: $90.36
|
B & C PROFESSIONAL COMPONENTS |
|

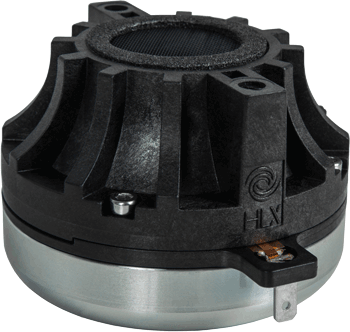

DH450 - 1" HIGH FREQUENCY DRIVER |
|
B&C DH450 HAS AN INCREASED DIAPHRAGM AREA & REDUCED INTERMODULAION DISTORTION! |
|
|
|
DH450 |
|
Item Price: $90.36 |
|
|
SPEAKER
MODEL |
DH450 |
|
SPECIFICATIONS |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
60
Watts |
| Program Power | 120 Watts |
|
Frequency
Response |
1.0kHz
- 18kHz |
| Recommended Crossover | 1.0kHz |
|
Sensitivity
(1W/1m) |
106dB |
|
Voice
Coil Diameter |
1.7" / 44mm |
| Winding Material | Aluminum |
| Inductance | 0.16mH |
| Diaphragm Material | HT Polymer |
| Flux Density | 1.9T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
2.72" / 69mm |
| Mounting Holes | (2)M5 holes on 180°- 2.24" Dia. |
| Mounting Holes | (1)M5 holes on back of magnet |
| Depth | 1.89" / 44mm |
| Net Weight | 1.16 lbs./ .53 kg. |
| Shipping Weight | 1.23 lbs./ .56 kg. |
|

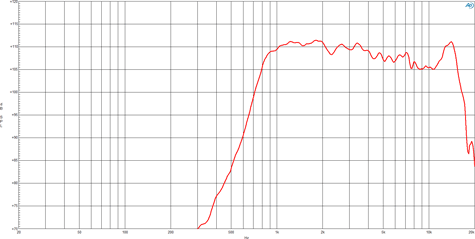

FREQUENCY RESPONSE |
|
|
|
|
|

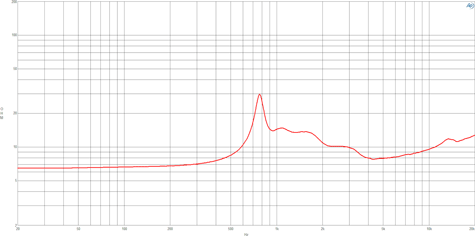

IMPEDANCE GRAPH |
|
|
|
|
|

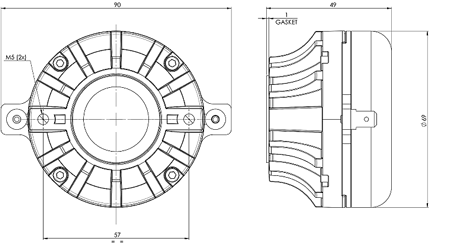

DRAWING |
|
|
|
|
