THIS B&C ME146 LINE ARRAY 1.4" HORN HAS VERY GOOD LOADING DOWN TO 500HZ!
ME146
Item Price: $126.90
Free UPS Ground Shipping in the U.S.
|
B & C PROFESSIONAL COMPONENTS |
|

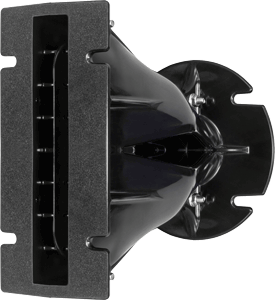

ME146 - 1.4" LINE ARRAY WAVEGUIDE HORN |
|
THIS B&C ME146 LINE ARRAY 1.4" HORN HAS VERY GOOD LOADING DOWN TO 500HZ! |
|
|
|
ME146 |
|
Item Price: $126.90 Free UPS Ground Shipping in the U.S. |
|
|
HORN
MODEL |
ME146 |
|
SPECIFICATIONS |
|
|
Throat
Diameter |
1.4" |
|
|
120° |
|
|
Depends On Configuration |
| Cutoff Frequency | 500Hz |
| Type | Bolt-on |
|
Material |
Polycarbonate |
|
MOUNTING INFORMATION |
|
| Dimensions | 3.15"W x 7.1"H x 6.9"D |
| Mounting Holes | (4)M6 holes on 4" Diameter |
| Shipping Weight | 1.65 lbs./ .64kg. |
|

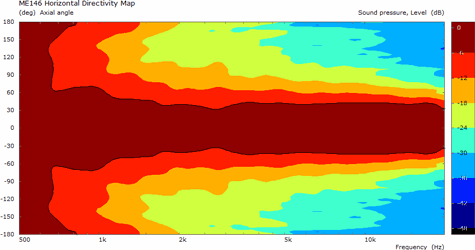

HORIZONTAL DIRECTIVITY |
|
|
|
|
|
VERTICAL DIRECTIVITY |
|
|
|
|

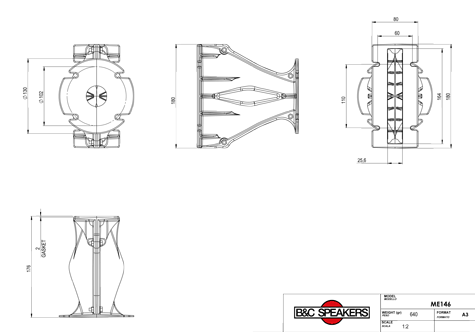

| DRAWING | |
 |
|
