THE B&C FB10CX64 2-WAY CROSSOVER FOR USE WITH THE 10CXN64 & 10FCX64 10" COAXIAL SPEAKERS |
|
|
|
FB10CX64 |
|
8 Ohms
Item Price: $151.92/Each |
|
|
B & C PROFESSIONAL COMPONENTS |
|

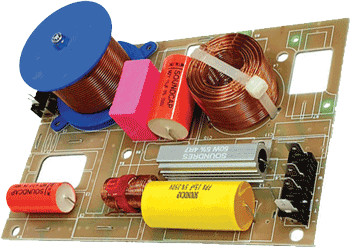

FB10CX64 - 2-WAY CROSSOVER |
|
THE B&C FB10CX64 2-WAY CROSSOVER FOR USE WITH THE 10CXN64 & 10FCX64 10" COAXIAL SPEAKERS |
|
|
|
FB10CX64 |
|
8 Ohms
Item Price: $151.92/Each |
|
|
SPEAKER
MODEL |
FB10CX64 |
|
SPECIFICATIONS |
|
| Type |
2-Way |
|
Impedance |
8 ohms |
|
Crossover
Frequency |
2.1kHz |
| Slope – Low Frequency | 18dB/octave Butterworth |
| Slope – High Frequency | 18dB/octave Butterworth |
|
MOUNTING INFORMATION |
|
|
Overall Dimensions |
6.81" Wide x 4.72" / 173mm x 120mm |
| Mounting Holes | (5) 6mm holes on PCB |
| Net Weight | 1.2 lbs./ .6 kg. |
|

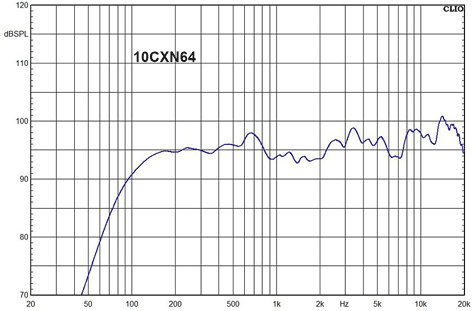

FREQUENCY RESPONSE |
|
|
|
|
|

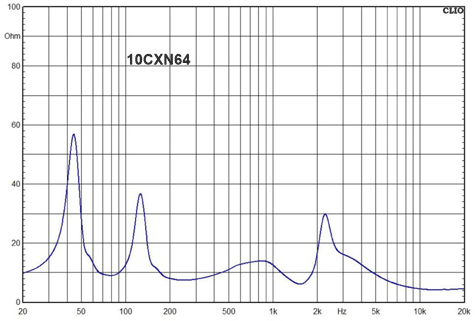

IMPEDANCE CURVES |
|
|
|
|

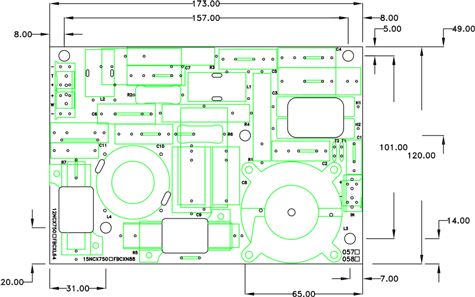

| DRAWING | |
 |
|
