B&C FB10NCX is a 2 way crossover for the 10NCX coaxial speaker. B&C FB10NCX crossover. B&C FFB10NCX 2-way crossovers available now.

B & C PROFESSIONAL COMPONENTS

FB10NCX - 2-WAY 1.8KHZ CROSSOVER

B&C FB10NCX IS A 2-WAY CROSSOVER FOR USE WITH THE 10NCX COAXIAL SPEAKER OR 2-WAY SPEAKER SYSTEMS
CAN BE USED IN A 2-WAY SPEAKER SYSTEM THAT REQUIRES 12DB ATTENUATION FOR THE HIGH FREQUENCY
CROSSOVER FREQUENCY OF 1.8KHZ & 400 WATTS POWER HANDLING
12DB/OCTAVE SLOPE FOR BOTH THE LOW FREQUENCY & HIGH FREQUENCY DRIVER
AVAILABLE IN 8 OHMS ONLY

THE B&C FB10NCX 2-WAY CROSSOVER FOR USE WITH THE 10NCX COAXIAL SPEAKERS & 2-WAY SPEAKER SYSTEMS

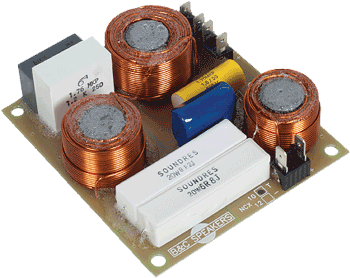

B&C FB10NCX 2-Way Crossover

FB10NCX

8 Ohms

Item Price: $84.95/Each

SPEAKER MODEL	FB10NCX
SPECIFICATIONS
Type	2-Way
Impedance	8 ohms
Crossover Frequency	1.8kHz
Power Handling	400 Watts
Slope – Low Frequency	12dB/octave Butterworth
Slope – High Frequency	12dB/octave Butterworth
MOUNTING INFORMATION
Overall Dimensions	4.57" Wide x 4.13" / 116mm x 105mm
Mounting Holes	(4) 6mm holes on PCB
Net Weight	1.34 lbs./ .61 kg.
Shipping Weight	1.41 lbs./ .64 kg.

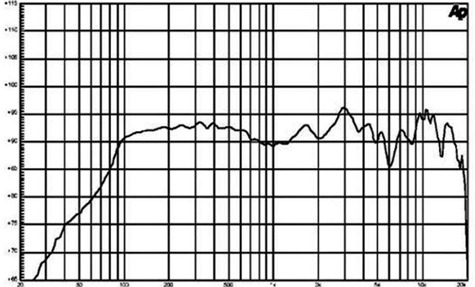

FREQUENCY RESPONSE

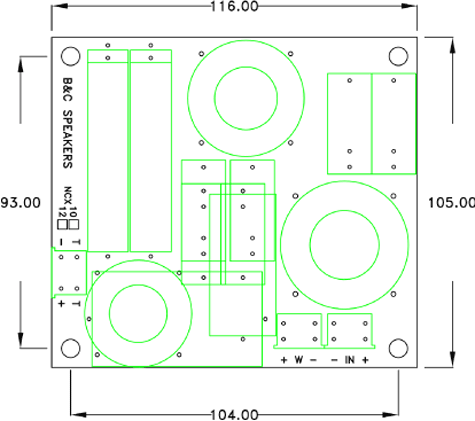

DRAWING
