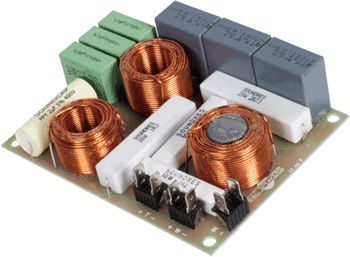

THE B&C FB12CXT 2-WAY CROSSOVER FOR USE WITH THE 12CXT 12" COAXIAL SPEAKER |
|
|
|
FB12CXT |
|
8 Ohms
Item Price: $78.00/Each |
|
|
B & C PROFESSIONAL COMPONENTS |
|
FB12CXT - 2-WAY CROSSOVER |
|
THE B&C FB12CXT 2-WAY CROSSOVER FOR USE WITH THE 12CXT 12" COAXIAL SPEAKER |
|
|
|
FB12CXT |
|
8 Ohms
Item Price: $78.00/Each |
|
|
SPEAKER
MODEL |
FB12CXT |
|
SPECIFICATIONS |
|
| Type |
2-Way |
|
Impedance |
8 ohms |
|
Crossover
Frequency |
2.0kHz |
| Slope – Low Frequency | 12dB/octave Butterworth |
| Slope – High Frequency | 6dB/octave Butterworth |
|
MOUNTING INFORMATION |
|
|
Overall Dimensions |
5.63" Wide x 4.25" / 143mm x 108mm |
| Mounting Holes | (4) 6mm holes on PCB |
| Net Weight | 1.32 lbs./ .6 kg. |
| Shipping Weight | 1.41 lbs./ .64 kg. |
|

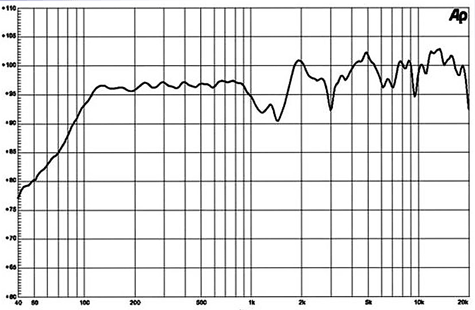

FREQUENCY RESPONSE |
|
|
|
|

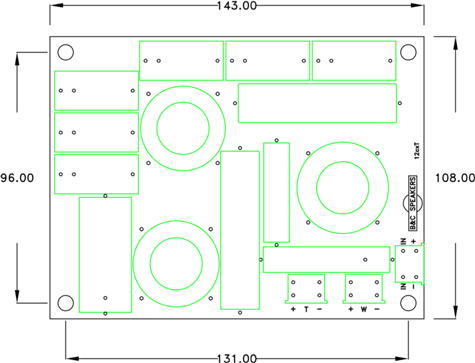

| DRAWING | |
 |
|
