B & C PROFESSIONAL COMPONENTS

FB-464 - 2-WAY CROSSOVER

NEW B&C FB-464 IS A 2-WAY CROSSOVER FOR THE DCX-354 1.4" EXIT COAXIAL COMPRESSION DRIVER
THE FB-464 PHASE ALIGNS THE MID AND HIGH FREQUENCY DRIVERS
THIS CROSSOVER FREQUENCY BALANCES THE ENERGY BETWEEN THE 2 DIAPHRAGMS FOR MINIMUM DISTORTION AT ITS' OUTPUT OPERATING LEVELS
UTILIZES AN INDUSTRIAL FILAMENT BULB TO PREVENT DAMAGE FROM OVERPOWERING
TO BE USED WITH DCX-464 & DCX-462 COAXIAL COMPRESSION DRIVERS
AVAILABLE IN 8 & 16 OHMS

THE B&C FB-464 2-WAY CROSSOVER FOR USE WITH THE DCX464 & DCX462 COAXIAL COMPRESSION DRIVERS
	FB-464
	8 Ohms Item Price: $104.97/Each
	16 Ohms Item Price: $104.97/Each

SPEAKER MODEL	FB-464
SPECIFICATIONS
Type	2-Way
Impedance	8 & 16 ohms
Crossover Frequency	3.6kHz
Slope – Low Frequency	18dB/octave Butterworth
Slope – High Frequency	12dB/octave Butterworth
MOUNTING INFORMATION
Overall Dimensions	3.94"x 4.33" / 100mm x 110mm
Mounting Holes	4mm holes on PCB at 100mm x 90.9mm
Depth	2.87" / 73mm
Net Weight	.82 lbs./ .37 kg.
Shipping Weight	.87 lbs./ .4 kg.

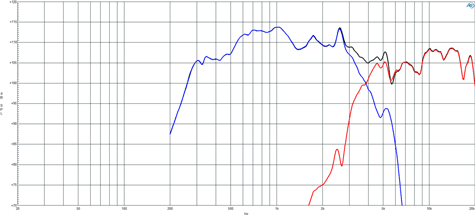

FREQUENCY RESPONSE

IMPEDANCE CURVES

DRAWING
