B & C PROFESSIONAL COMPONENTS

FBCXN36 - 2-WAY CROSSOVER

NEW B&C FBCXN36 IS A 2-WAY CROSSOVER FOR USE WITH THE 4CXN36, 5CXN36 & 6CXN36 COAXIAL SPEAKERS
CROSSOVER FREQUENCY OF 1.0KHZ & 200 WATTS AES POWER HANDLING
24DB/OCTAVE SLOPE FOR LOW FREQUENCY & 12DB/OCTAVE FOR HIGH FREQUENCY DRIVER FOR OPTIMUM PERFORMANCE
TO BE USED WITH 4CXN36, 5CXN36 & 6CXN36 COAXIAL SPEAKERS
AVAILABLE IN 8 OHMS ONLY

THE B&C FBCXN36 2-WAY CROSSOVER FOR USE WITH THE 4CXN36, 5CXN36 & 6CXN36 COAXIAL SPEAKER!

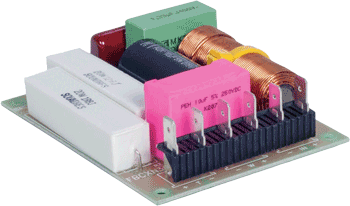

B&C FBCXN36 Crossover

FBCXN36

8 Ohms

Item Price: $69.15/Each

SPEAKER MODEL	FBCXN36
SPECIFICATIONS
Type	2-Way
Impedance	8 ohms
Crossover Frequency	1.0kHz
Power Handling	200 watts AES
Slope – Low Frequency	12dB/octave Butterworth
Slope – High Frequency	6dB/octave Butterworth
MOUNTING INFORMATION
Overall Dimensions	2.91" Wide x 3.94" / 74mm x 100mm
Mounting Holes	(4) 6mm holes on PCB
Mounting Hole Dimensions	2.6" Wide x 3.54" / 66mm x 90mm
Net Weight	.49 lbs./ .22 kg.
Shipping Weight	.54 lbs./ .25 kg.

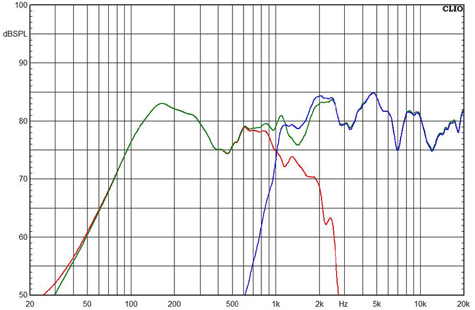

FREQUENCY RESPONSE

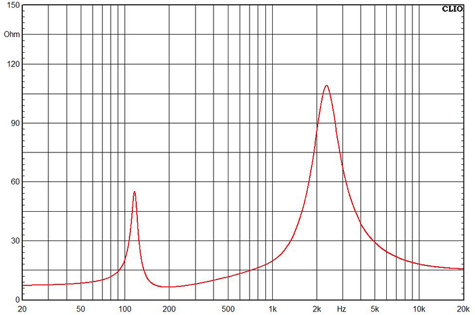

IMPEDANCE RESPONSE

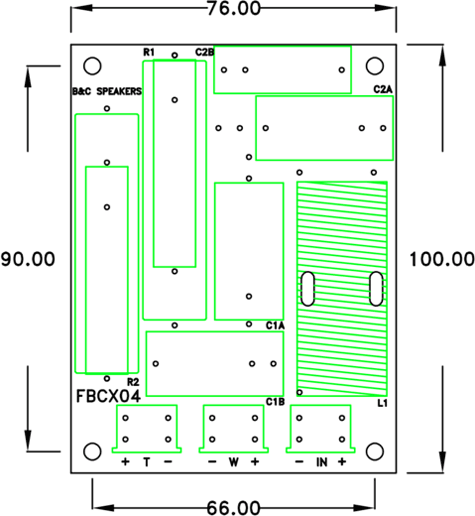

DRAWING
