THIS B&C WG148-464 LINE ARRAY COAXIAL DRIVER CONSISTS OF ME148 HORN & DCX464 COAXIAL DRIVER!
WG148-464
Item Price: $1,277.47
|
B & C PROFESSIONAL COMPONENTS |
|
WG148-464 - 1.4" LINE ARRAY COAXIAL HORN/DRIVER |
|
THIS B&C WG148-464 LINE ARRAY COAXIAL DRIVER CONSISTS OF ME148 HORN & DCX464 COAXIAL DRIVER! |
|
|
|
WG148-464 |
|
Item Price: $1,277.47 |
|
|
HORN
MODEL |
WG148-464 |
|
SPECIFICATIONS |
|
|
HF Driver Exit |
1.4" |
|
Impedance |
8 Ohms |
|
AES
Power Rating |
110
Watts |
|
Program
Power Rating |
220
Watts |
| Frequency Response |
300Hz
- 18kHz |
| Recommended Crossover | 300Hz |
|
Sensitivity
(1W/1m) |
109.1dB |
|
|
140° |
|
|
Depends On Configuration |
|
HIGH FREQUENCY DRIVER |
|
| Minimum Impedance | 9.1 Ohms |
|
Voice
Coil Diameter |
2.56" / 65mm |
|
Sensitivity
(1W/1m) |
107.6dB |
| Flux Density | 2.14 T-M |
| Inductance | 0.1mH |
| Winding | Aluminum |
| Diaphragm | HT Polymer |
| Magnet | Neodymium |
|
MID FREQUENCY DRIVER |
|
| Minimum Impedance | 6.5 Ohms |
| Voice Coil Diameter | 4" / 100mm |
|
Sensitivity
(1W/1m) |
109.1dB |
| Flux Density | 1.9 T-M |
| Inductance | 0.21mH |
| Winding | Aluminum |
| Diaphragm | HT Polymer |
| Magnet | Neodymium |
|
HORN MATERIALS |
|
|
Material |
ABS |
|
MOUNTING INFORMATION |
|
| Exit Size | 225mm x 25.6mm / 8.9"H x 1"W |
| Front Dimensions | 240mm x 80mm x 251.9mm / 9.45"H x 3.15"W x 9.92"D |
| Mounting Holes | 4 |
| Driver Diameter | 152mm / 5.98" |
| Net Weight | 9.88 lbs./ 4.48kg. |
| Shipping Weight | 10.8 lbs./ 4.91g. |
|

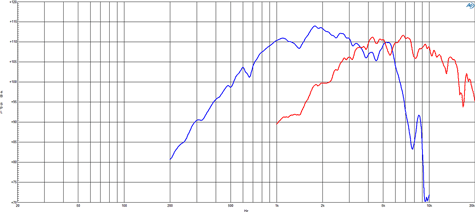

FREQUENCY RESPONSE GRAPH |
|
 |
|

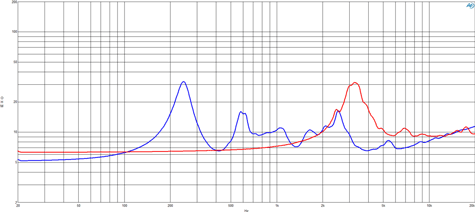

| IMPEDANCE GRAPH | |
 |
|

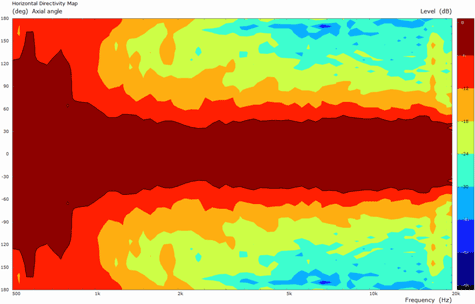

| HORIZONTAL DISPERSION | |
 |
|

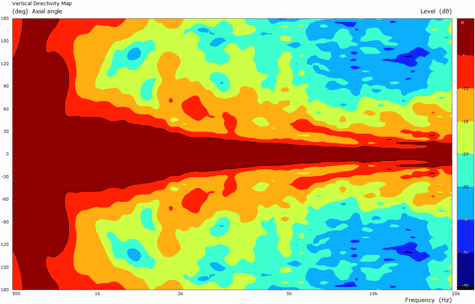

| VERTICAL DISPERSION | |
 |
|

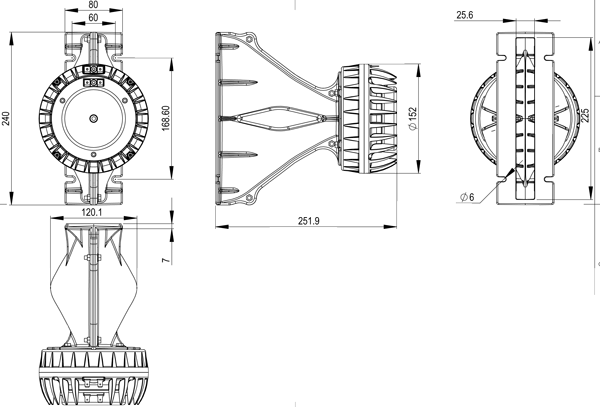

| DRAWING | |
 |
|
