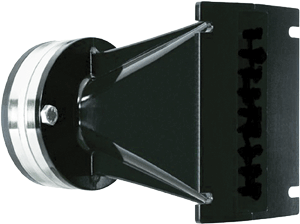

• THE B&C WG400 IS A 1" HIGH FREQUENCY LINE ARRAY HORN/DRIVER
• POWER HANDLING OF 50 WATTS AES & 100 WATTS PROGRAM
• MAXIMUM 140° HORIZONTAL COVERAGE & VERTICAL COVERAGE DEPENDS ON CONFIGURATION
• CONSISTS OF ME102 WAVEGUIDE HORN & DE400 1 INCH HIGH FREQUENCY DRIVER
• POLYIMIDE DIAPHRAGM & NEODYMIUM MAGNET
• HORN IS MADE FROM STRONG CAST ALUMINUM
• THE B&C WG400 WAVEGUIDE IS OPTIMIZED IN LINE ARRAY SOUND REINFORCEMENT SYSTEMS

HORN MODEL	WG400
SPECIFICATIONS
HF Driver Exit	1" / 25mm
Impedance	8 Ohms
AES Power Rating	50 Watts
Program Power Rating	100 Watts
Frequency Response	1.2kHz - 18kHz
Recommended Crossover	1.5kHz
Sensitivity (1W/1m)	108.5dB
Voice Coil Diameter	1.7" / 44mm
Flux Density	1.8 T-M
Coverage: Horizontal	140°
Coverage: Vertical	Depends On Configuration
HF DRIVER MATERIALS
Winding	Aluminum
Diaphragm	Polyimide
Magnet	Neodymium
HORN MATERIALS
Material	Cast Aluminum
MOUNTING INFORMATION
Exit Size	102mm x 25.4mm / 4"H x 1"W
Dimensions	111mm x 87mm x 155mm / 4.35"H x 3.43"W x 6.1"D
Mounting Holes	4
Net Weight	4.35 lbs./ 1.98kg.
Shipping Weight	4.68 lbs./ 2.13kg.

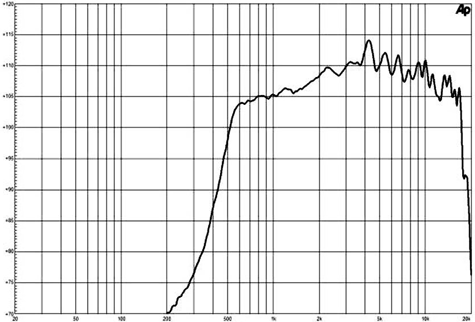

FREQUENCY RESPONSE GRAPH

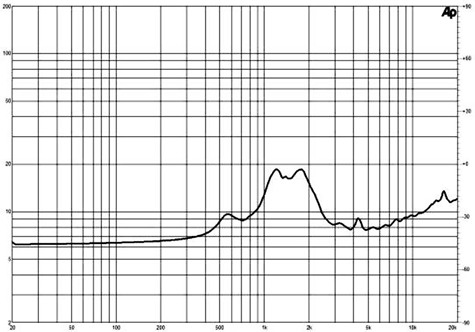

IMPEDANCE GRAPH

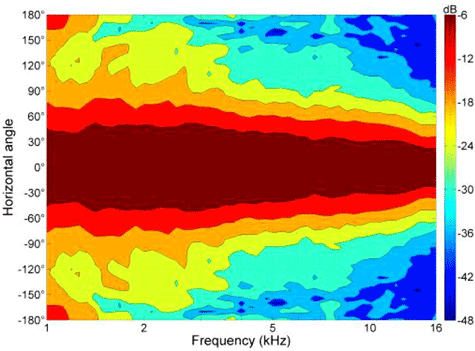

HORIZONTAL DISPERSION

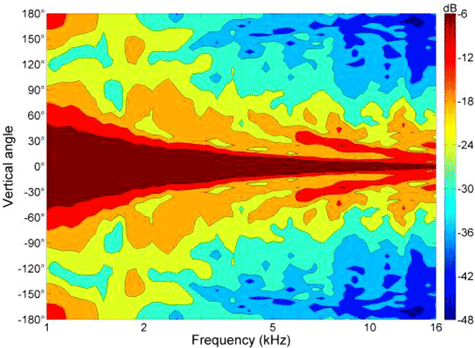

VERTICAL DISPERSION

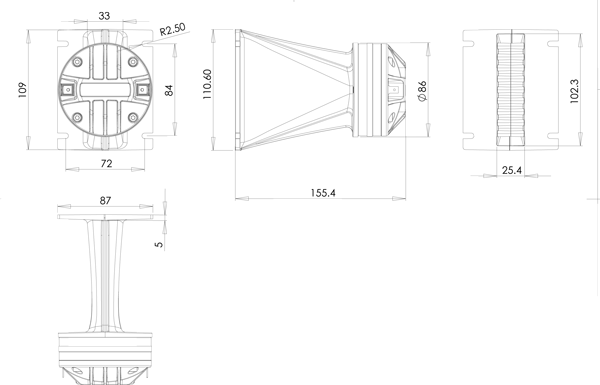

DRAWING
