CTS KSN-1141 - PIEZO SUPERTWEETER
|
|
|
CTS KSN-1141 - PIEZO SUPERTWEETER |
|
THE CTS KSN-1141 PIEZO SUPERTWEETER WORKS WELL FOR EXTENDED HIGH FREQUENCY UP TO 30KHZ! |
|
|
|
Item Price: $38.95 |
|
MODEL |
KSN-1141 |
|
SPECIFICATIONS |
|
|
RMS
Power Rating |
400 Watts @ 1.8kHz |
|
Impedance |
Appears As .3uF |
| Sensitivity | 92dB SPL |
|
Usable
Frequency Range |
1.8kHz
- 30kHz |
|
Minimum Recommended
Crossover |
1.8kHz |
|
Maximum Operating Temperature |
80° C |
|
DIMENSIONS |
|
| Overall Height |
3.13"
/ 79.4mm |
| Overall Width |
7.35"
/ 186.69mm |
| Depth | 4.25" / 108mm |
| Baffle Cutout Height | 2.125" / 53.98mm |
| Baffle Cutout Width | 6.25" / 158.75mm |
| Net Weight | 0.34 lbs. |
|

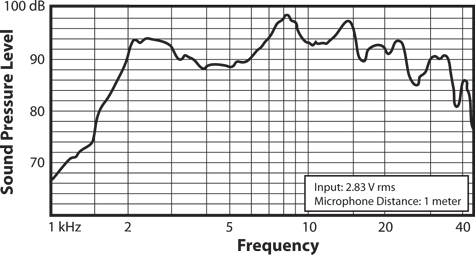

FREQUENCY RESPONSE GRAPH |
|
|
|
|
|

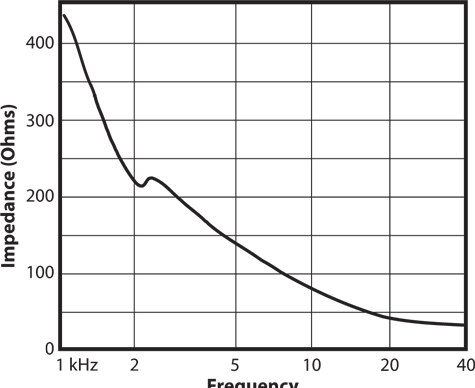

IMPEDANCE CURVE |
|
|
|
|
