CTS KSN-1142A piezo supertweeter - CTS KSN-1142A piezo supertweeter for all high frequency speaker applications. CTS KSN-1142 piezo tweeters in stock.

Genuine Eminence

CTS KSN-1142A - PIEZO SUPERTWEETER

THE CTS KSN-1142A PIEZO SUPERTWEETER HANDLES 400 WATTS RMS AT 1.8KHZ
ORIGINALLY DESIGNED BY MOTOROLA TO HAVE AN EXTENDED RANGE UP TO 30KHZ
WIDE FREQUENCY RANGE FROM 1.8KHZ UP TO 30KHZ
THIS CTS KSN-1142 POWERLINE SERIES INCORPORATES PROTECTION CIRCUITRY WHICH ALLOWS IT TO BE USED SAFELY WITH AMPLIFIERS RATED AS A HIGH AS 400 WATTS RESULTING IN A TWEETER THAT IS PRACTICALLY BULLETPROOF
DOES NOT REQUIRE A HIGH PASS CROSSOVER & WEIGHS ONLY .3125 LBS
FOR ALL MID-HIGH FREQUENCY APPLICATIONS
IF THE BACK OF THE TWEETER DOES NOT SAY POWERLINE SERIES THEN IT IS NOT THE ORIGINAL MOTOROLA PIEZO SUPERTWEETER

THE CTS KSN-1142A PIEZO SUPERTWEETER WORKS WELL FOR EXTENDED HIGH FREQUENCY UP TO 30KHZ!
	We No Longer Stock This Model

MODEL	KSN-1142A
SPECIFICATIONS
RMS Power Rating	400 Watts @ 1.8kHz
Impedance	Appears As .3uF Capacitor
Sensitivity	92dB SPL
Usable Frequency Range	1.8kHz - 30kHz
Minimum Recommended Crossover	1.8kHz
Maximum Operating Temperature	80° C
DIMENSIONS
Overall Diameter	2.44" / 61.98mm
Depth	2.75" / 69.85mm
Thread Size	1.375" / 34.9mm
Net Weight	0.3125 lbs.

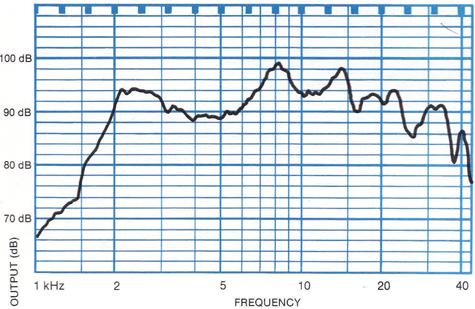

FREQUENCY RESPONSE GRAPH
