CTS KSN-1165A - PIEZO SUPERTWEETER
|
|
|
CTS KSN-1165A - PIEZO SUPERTWEETER |
|
THE CTS KSN-1165A PIEZO SUPERTWEETER WORKS WELL FOR EXTENDED HIGH FREQUENCY UP TO 30KHZ! |
|
|
|
Item Price: $38.95 |
|
MODEL |
KSN-1165A |
|
SPECIFICATIONS |
|
|
RMS
Power Rating |
400 Watts @ 1.8kHz |
|
Impedance |
Appears As .3uF |
| Sensitivity | 93dB SPL |
|
Usable
Frequency Range |
1.8kHz
- 30kHz |
|
Minimum Recommended
Crossover |
1.8kHz |
|
Maximum Operating Temperature |
90° C |
|
DIMENSIONS |
|
| Overall Height |
4.33"
/ 110mm |
| Overall Width |
4.33"
/ 110mm |
| Depth | 3.2" / 81mm |
| Bolt Circle Diameter | 5.2" / 132.08mm |
| Baffle Cutout Diameter | 3.5" / 88.9mm |
| Net Weight | 0.34 lbs. |
|

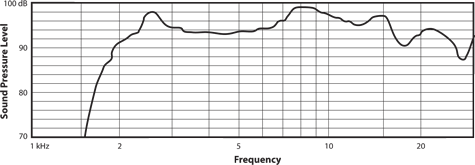

FREQUENCY RESPONSE GRAPH |
|
|
|
|
|

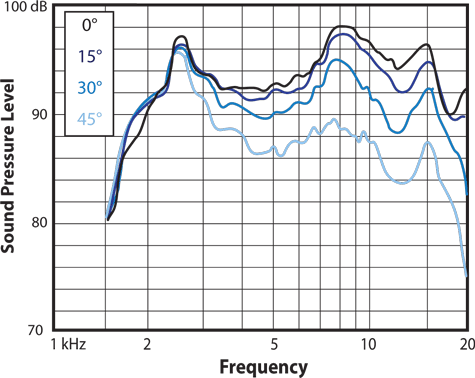

OFF-AXIS FREQUENCY RESPONSE |
|
|
|
|
|

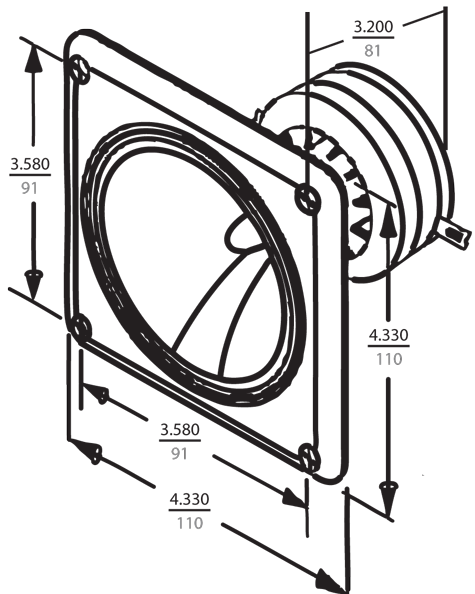

DRAWING |
|
|
|
|
