Genuine Eminence
10" GUITAR SPEAKER - HEMP CONE
|
|
|
|
|
10" GUITAR SPEAKER - HEMP CONE |
|
THE EMINENCE CANNABIS REX 10 INCH GUITAR SPEAKER HAS A HEMP CONE & DELIVERS A FULL BODIED SWEET SOUND W/ JUST ENOUGH BITE & SPARKLE! |
|
|
Free UPS Ground Shipping in the U.S. |
Cannabis Rex 10 - 8 ohms
Item Price: $119.99 |
|
WOOFER
MODEL |
CANNABIS REX 10 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10"
/ 254mm |
|
Impedance |
8
ohms
|
| RMS Power Rating | 50 Watts |
| Peak Power Rating | 100 Watts |

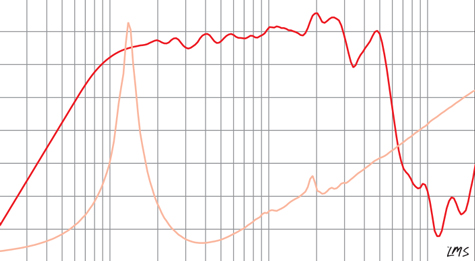

| Usable Frequency Response | 80Hz - 5.3kHz |
|
Voice Coil Diameter |
1.75"
/ 44mm |
|
Sensitivity
(1W/1m) |
99.3dB |
|
Magnet
Weight |
38
oz. |
| Air Gap Height | .31" / 7.9mm |
|
MOUNTING INFORMATION |
|
|
|
10.11" / 256.8mm |
| Bolt Circle Diameter |
9.6 |
| Baffle Cutout Diameter | 9.13" / 231.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.23" / 5.8mm |
| Overall Depth | 4" / 101.6mm |
| Net Weight | 7.3lbs. / 3.3kg. |
| Shipping Weight | 8.4lbs. / 3.8kg. |
|
MATERIALS |
|
| Basket | Stamped Steel |
| Voice Coil | Copper |
| Coil Former Material | Paper |
| Dust Cap | Zurette |
| Cone | Hemp |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 130 Hz |
| Impedance (Re) | 6.35 ohms |
| Coil Inductance (Le) | 0.49mH |
| Electromagnetic Q (Qes) | 0.69 |
| Mechanical Q (Qms) | 9.28 |
| Total Q (Qts) | 0.64 |
| Compliance Equiv. Vol. (Vas) | 13 Liters / 4.6 cu. ft. |
| BL Product (BL) | 13.16 T-M |
| Diaphragm Mass (Mms) | 20 Grams |
| Voice Coil Overhang (Xmax) | 0.79mm |
| Surface area of Cone (Sd) | .03661m2 |
|
|
|
