ASD1001B - 1" BOLT-ON TYPE HIGH FREQUENCY DRIVER
|
|
|
ASD1001B - 1" BOLT-ON TYPE HIGH FREQUENCY DRIVER |
|
NICE SOUND FROM THIS 1" DRIVER AND IT IS REASONABLY PRICED! |
|
|
|
ASD1001B |
|
8 ohms
Item Price: $39.99 |
|
ASD1001B & ASD1001S Diaphragm -
Item Price: $19.99 |
|
|
HF DRIVER MODEL |
ASD1001B |
|
SPECIFICATIONS |
|
|
Horn
Throat Exit Diameter |
1"
/ 25.4mm |
|
Impedance |
8 |
|
Frequency
Response
|
2.5kHz
- 20kHz |
|
Power
Rating @ 2.5kHz
|
50 Watts |
|
Minimum
Cut-off Frequency |
2.5kHz |
|
Sensitivity(2.83v @1m on APT200) |
104.1dB |
|
Voice
Coil Diameter |
1.3"
/ 33mm |
|
Re |
6.7 ohms |
|
Le |
1.0mH |
|
Weight |
2.0lbs. / 0.91kg. |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
3.5" / 88.9 mm |
| Mounting Type | Bolt-On |
| Depth | 2" / 50.8mm |
| Mounting Holes | 3" / 76.2mm |
|
MOUNTING INFORMATION |
|
|
Diaphragm
Material |
Titanium |
|
Voice
Coil Former |
|
| Magnet | Ferrite |
|

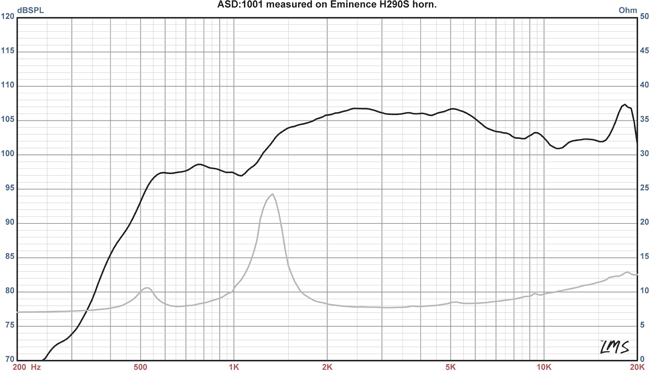

FREQUENCY RESPONSE CURVE |
|
|
|
|
