ALPHA-6CBMRA - 6.5" CLOSED BACK MIDRANGE
|
|
|
ALPHA-6CBMRA - 6.5" CLOSED BACK MIDRANGE |
|
THE EMINENCE ALPHA-6CBMRA IS A 6.5" SEALED BACK MIDRANGE SPEAKER THAT HANDLES 100 WATTS RMS WITH LOUD CLEAN MIDRANGE! |
|
|
|
Alpha-6CBMRA
Item Price: $79.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
ALPHA-6CBMRA |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6"
/ 152.4mm |
|
Impedance |
8
ohms
|
|
RMS
Power Rating |
100
Watts |
| Program Power Handling | 200 Watts |
|
Frequency
Response |
400Hz -
5kHz |
|
Sensitivity
(1W/1m) |
97.8dB |
|
Voice
Coil Diameter |
1.5"
/ 38.1mm |
|
Max. Crossover Frequency |
5kHz |
| Rec. Enclosure Volume(Sealed) | .1-.2cu. ft./2.8-5.7 Liters |
| Rec. Enclosure Volume(Vented) | .12-.55cu. ft./3.4-15.6 Liters |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 6.59" / 167.4mm |
| Bolt Circle Diameter | 6.06" / 153.9mm |
| Baffle Cutout Diameter | 5.69" / 144.5mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | 0.23" / 5.8mm |
| Overall Depth | 2.2" / 55.9mm |
| Magnet Weight | 16 oz. |
| Net Weight | 3.7 lbs. / 1.68 kg. |
| Shipping Weight | 4.4 lbs. /2.0 kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 406.98 Hz |
|
Impedance
(Re) |
5.26 ohms |
| Coil Inductance (Le) | 0.38mH |
| Electromagnetic Q (Qes) |
1.74 |
| Mechanical Q (Qms) | 6.04 |
|
Total Q (Qts) |
1.35 |
| Compliance Equivalent Vol. (Vas) | .45 Liters/.02cu. ft. |
| Voice Coil Overhang (Xmax) | 1.5mm |
| Diaphragm Mass (Mms) | 8 Grams |
| BL Factor (BL) | 7.86 T-M |
| Surface Area of Cone (Sd) | .01267m2 |
|

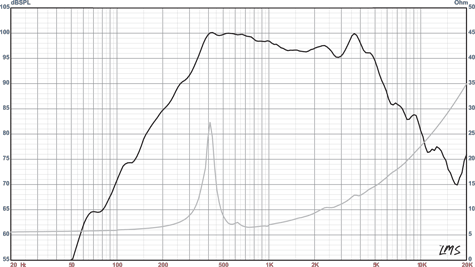

FREQUENCY RESPONSE |
|
|
|
|
