EMINENCE ALPHA-8A - 8" SPEAKER

THE EMINENCE ALPHA-8A IS A GOOD CLEAN SOUNDING 8" SPEAKER WITH 125 WATTS RMS!

Eminence Alpa-8AEminence Alpa-8A

Item Price: $79.99

Free UPS Ground Shipping in the U.S.

WOOFER MODEL

ALPHA-8A

SPECIFICATIONS

Nominal Basket Diameter

8" / 203.2mm

Impedance

8 ohms

RMS Power Rating

125 Watts

Program Power Handling 250 Watts

Frequency Response

58Hz - 5kHz

Sensitivity (1W/1m)

94dB

Voice Coil Diameter

1.5" / 38.1mm

Max. Crossover Frequency

5kHz

Rec. Enclosure Volume(Sealed) .18-.25cu. ft./5-7 Liters
Rec. Enclosure Volume(Vented) .59-.9cu. ft./16.7-25.5 Liters

MOUNTING INFORMATION

Overall Diameter 8.24" / 209.3mm
Bolt Circle Diameter 7.75" / 196.9mm
Baffle Cutout Diameter 7.13" / 181.1mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.22" / 5.6mm
Overall Depth 3.25" / 82.6mm
Magnet Weight 20 oz.
Net Weight 4.3 lbs. / 1.95 kg.
Shipping Weight 5.1lbs. / 2.31kg.

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 73 Hz
Impedance (Re) 5.3 ohms
Coil Inductance (Le) 0.44mH
Electromagnetic Q (Qes) .28
Mechanical Q (Qms) 4.6
Total Q (Qts) .59
Compliance Equivalent Vol. (Vas) 17.7 Liters/.6cu. ft.
Voice Coil Overhang (Xmax)

3.2mm

Diaphragm Mass (Mms) 17 Grams
BL Factor (BL) 7.8 T-M
Surface Area of Cone (Sd) .021m2

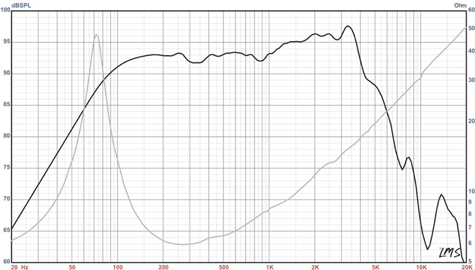

ALPHA-8A RESPONSE CURVE

Alpha-8A Frequency Response
