Genuine Eminence
ALPHA-10A
|
|
|
ALPHA-10A |
|
THE EMINENCE ALPHA-10A HAS A NICE BASS & MID SOUND FROM THIS AFFORDABLE 10" SPEAKER! |
|
|
|
Item Price: $94.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
ALPHA-10 |
|
Specifications |
|
|
Nominal
Basket Diameter |
10"
/ 254mm |
|
Impedance |
8
ohms
|
|
RMS
Power Rating |
150
Watts |
| Program Power Handling | 300 Watts |
|
Frequency
Response |
57Hz -
4.5kHz |
|
Sensitivity
(1W/1m) |
95.6dB |
|
Voice
Coil Diameter |
1.5"
/ 38.1mm |
|
Max.
Crossover Frequency |
4.5kHz |
| Rec. Enclosure Vol.(Sealed) | .3-.4 cu. ft ./ 8.5-11.3 L |
| Rec. Enclosure Vol.(Vented) | 1.0-1.9 cu. ft ./ 28.3-53.8 L |
|
Mounting Information |
|
|
Overall
Diameter |
10.11" / 256.8mm |
|
Bolt
Circle Diameter |
9.6" / 243.8mm |
| Baffle Cutout Diameter | 9.13" / 231.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.23" / 5.8mm |
| Overall Depth | 3.9" / 99.1mm |
|
Magnet Weight |
20 oz. |
| Net Weight | 4.5 lbs. / 2.04 kg. |
| Shipping Weight | 5.6 lbs. / 2.54kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 5.31 ohms |
| Coil Inductance (Le) | 0.66mH |
| Electromagnetic Q (Qes) | .66 |
| Mechanical Q (Qms) |
5.21 |
| Total Q (Qts) | .59 |
| Compliance Equivalent Vol. (Vas) | 82.2 Liters/2.9cu. ft. |
| Voice Coil Overhang (Xmax) | 3.2mm |
| Diaphragm Mass (Mms) | 22 Grams |
| BL Factor (BL) | 7.5 T-M |
| Surface Area of Cone (Sd) | .03554m2 |
|

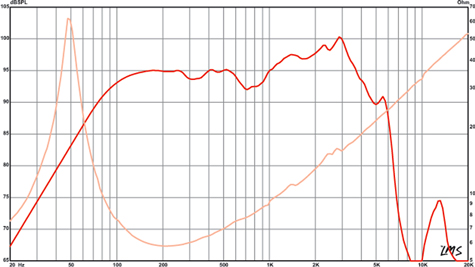

ALPHA-10A FREQUENCY RESPONSE CURVE |
|
|
