BETA-10CBMRA - 10" CLOSED BACK MIDRANGE
|
|
|
BETA-10CBMRA - 10" CLOSED BACK MIDRANGE |
|
THE EMINENCE BETA-10CBMRA IS A CLOSED BACK MIDRANGE WITH 200 WATTS RMS POWER HANDLING! |
|
|
|
No Longer Available |
|
WOOFER
MODEL |
BETA-10 |
|
Specifications |
|
|
Nominal
Basket Diameter |
10" / 254mm |
|
Impedance |
8
|
|
RMS
Power Rating |
200 Watts |
| Program Power Handling | 400 Watts |
| Frequency Response | 300Hz - 4kHz |
|
Sensitivity
(1W/1m) |
99.6dB |
| Voice Coil Diameter | 2" / 50.8mm |
|
Max.
Crossover Frequency |
4kHz |
|
Mounting Information |
|
| Overall Diameter | 10.09" / 256.3mm |
| Bolt Circle Diameter | 9.66" / 245.4mm |
| Baffle Cutout Diameter | 9.18" / 233.2mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.35mm |
|
Overall
Depth |
3.56" / 90.4mm |
| Magnet Weight | 34 oz. |
| Net Weight | 7.3 lbs. / 3.31kg. |
| Shipping Weight | 8.3 lbs. / 3.76kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 326.4 Hz |
|
Impedance
(Re) |
5.68 ohms |
| Coil Inductance (Le) | 0.48mH |
| Electromagnetic Q (Qes) | 2.27 |
| Mechanical Q (Qms) |
7.14 |
| Total Q (Qts) | 1.73 |
| Compliance Equivalent Vol. (Vas) | 1.7 Liters/.06cu. ft. |
| Voice Coil Overhang (Xmax) | 1.5mm |
| Diaphragm Mass (Mms) | 18 Grams |
| BL Factor (BL) | 9.5 T-M |
| Surface area of Cone (Sd) | .03501m2 |
|

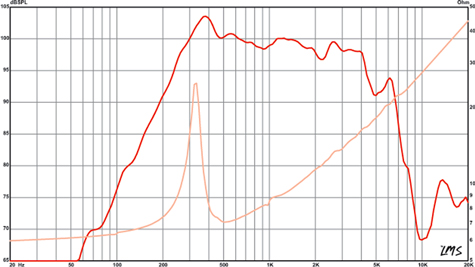

BETA-10CBMRA FREQUENCY RESPONSE CURVE |
|
|
|
|
