Genuine Eminence

BETA-6A - 6.5" MID-BASS SPEAKER

THE EMINENCE BETA-6A IS A POWERFUL 6.5" SPEAKER THAT HANDLES 175 WATTS RMS & 350 WATTS PROGRAM!

Eminence Beta-6A



Item Price: $89.99

Free UPS Ground Shipping in the U.S.

WOOFER MODEL BETA-6A

Specifications

Nominal Basket Diameter 6.5" / 165.1mm
Impedance 8 Ohms
RMS Power Rating 175 Watts
Program Power Handling 350 Watts
Frequency Response 84Hz - 4.0kHz
Sensitivity (1W/1m) 94dB
Voice Coil Diameter 2" / 50.8mm
Max. Crossover Frequency 4.0kHz

Mounting Information

Overall Diameter 6.59" /167.4mm
Bolt Circle Diameter 6.06" / 153.9mm
Baffle Cutout Diameter 5.65" / 143.5mm
No. Of Mounting Holes 4
Mounting Hole Diameter 0.23" / 5.8mm
Overall Depth 2.66" / 67.6mm
Magnet Weight 30 oz.
Net Weight 5.6 lbs. / 2.54 kg.
Shipping Weight 6.3 lbs. /2.86kg.

 Thiele-Small Parameters

Resonant Frequency (fs) 122.6 Hz
Impedance (Re)

5.18 ohms

Coil Inductance (Le) 0.43mH
Electromagnetic Q (Qes)

.66

Mechanical Q (Qms) 3.46
Total Q (Qts) .56
Compliance Equivalent Vol. (Vas) 3.51 Liters/.12cu. ft.
Voice Coil Overhang (Xmax) 4.5mm
Diaphragm Mass (Mms) 11 Grams
BL Factor (BL) 8.13 T-M
Surface area of Cone (Sd) .01299m2

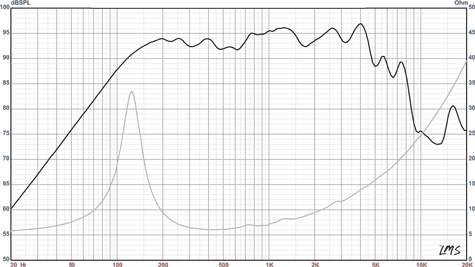

BETA-6A RESPONSE CURVE

Beta-6A Frequency Graph
