EMINENCE DELTA-10A-2-2 - 10" SPEAKER
|
|
|
EMINENCE DELTA-10A-2-2 - 10" SPEAKER |
|
THE EMINENCE DELTA-10A-2-2 HAS STRONG TIGHT BASS W/ A 6.39MM XMAX AND CLEAN CRISP MIDS! |
|
|
|
Item Price: $139.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
DELTA- |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10"
/ 254mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
425
Watts |
| Program Power Handling | 850 Watts |
|
Frequency
Response |
50Hz
- 3.7kHz |
|
Sensitivity
(1W/1m) |
96.7dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
|
Max.
Crossover Frequency |
3.7kHz |
| Rec. Enclosure Volume(Sealed) | .4-4cu. ft./11.3-113 Liters |
| Rec. Enclosure Volume(Vented) | .4-1.34cu. ft./11.3-37.9 Liters |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil | Aluminum |
| Former | Polyimide |
| Cone | Paper |
| Surround | Cloth |
| Dust Cap | Solid Composition Paper |
| Core | Vented |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
10.09" / 256.3mm |
|
Bolt Circle Diameter |
9.66" / 245.4mm |
| Baffle Cutout Diameter | 9.18" / 233.2mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 4.25" / 108mm |
| Magnet Weight | 56 oz. |
| Net Weight | 10.8 lbs. / 4.9 kg. |
| Shipping Weight | 12 lbs. / 5.44kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 69.7 Hz |
|
Impedance
(Re) |
5.52 ohms |
| Coil Inductance (Le) | 0.58mH |
| Electromagnetic Q (Qes) | .48 |
| Mechanical Q (Qms) | 5.79 |
| Total Q (Qts) |
.44 |
| Compliance Equivalent Vol. (Vas) | 29.73 Liters/1.05cu. ft. |
| Voice Coil Overhang (Xmax) |
6.39mm |
| Diaphragm Mass (Mms) | 29.5 Grams |
| BL Factor (BL) | 12.19 T-M |
| Surface Area of Cone (Sd) | .03449m2 |
|

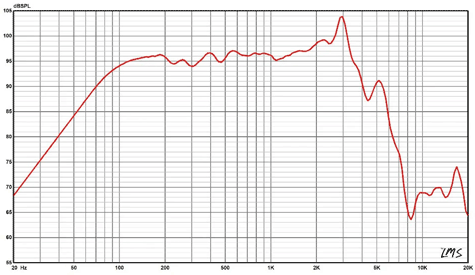

Delta-10A-2-2 FREQUENCY RESPONSE CURVE |
|
|
|
|
