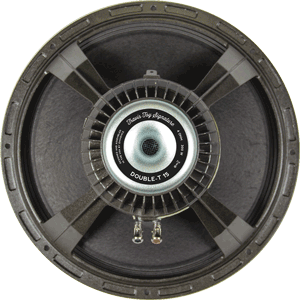

DOUBLE-T15 - TAVIS TOY 15" PEDAL STEEL GUITAR SPEAKER
|
|
|
DOUBLE-T15 - TAVIS TOY 15" PEDAL STEEL GUITAR SPEAKER |
|
SIGNATURE TRAVIS TOY 15" PEDAL STEEL GUITAR SPEAKER HAS A TIGHT BASS, STRONG MIDS & WARM CLEAN HIGHS WITH 300 WATTS RMS POWER HANDLING! |
|
|
|
Item Price: $269.99 Free UPS Ground Shipping in the U.S. |
| SPEAKER MODEL | DOUBLE-T15 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
15" / 381mm |
|
Impedance |
4 ohms |
| RMS Power Rating | 300 Watts |
| Program Power Rating | 600 Watts |
| Usable Frequency Response | 50Hz - 3.3kHz |
|
Voice Coil Diameter |
3" / 76mm |
|
Sensitivity (1W/1m) |
101dB |
| Air Gap Height | .36" / 9.1mm |
| Magnet Weight | 11 oz. |
| Net Weight | 7.7bs. /3.49kg. |
| Shipping Weight | 9.9lbs. /4.49kg. |
|
MOUNTING INFORMATION |
|
|
|
15.32" / 389.1mm |
| Bolt Circle Diameter |
14.56 |
| Baffle Cutout Diameter | 14" / 355.6mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.28" / 7.11mm |
| Overall Depth | 6.63" / 168.3mm |
|
MATERIALS |
|
| Cone | Paper |
| Voice Coil | Copper |
| Former | Polyimide |
| Core | Vented |
| Magnet | Neodymium |
| Basket | Die-Cast Aluminum |
| Surround | Cloth |
| Dust Cap | Paper |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 56Hz |
| Impedance (Re) | 3.18 ohms |
| Coil Inductance (Le) | 0.4mH |
| Electromagnetic Q (Qes) | .34 |
| Mechanical Q (Qms) | 9.71 |
| Total Q (Qts) | 0.33 |
| Compliance Equivalent Vol. (Vas) | 111.97 Liters/3.95cu. ft. |
| Voice Coil Overhang (Xmax) | 1.4mm |
| Surface Area of Cone (Sd) | .08563m2 |
| Diaphragm Mass (Mms) | 74 Grams |
| BL Product (BL) | 15.76 T-M |
| Peak Dia. Displacement Vol. (Vd) | 119.9cc |
|
DOUBLE-T15 RESPONSE CURVE |
|
|
Coming Soon |
|
