KAPPA-12A - 12" SPEAKER
|
|
|
KAPPA-12A - 12" SPEAKER |
| THE EMINENCE KAPPA-12A HAS STRONG MIDS & UPPER BASS MAKES THIS A GREAT CHOICE FOR STAGE MONITORS! | |
|
|
Item Price: $164.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
Kappa-12 |
| SPECIFICATIONS | |
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
8
ohms |
|
RMS Power Rating |
450 Watts |
| Program Power Handling | 900 Watts |
|
Frequency
Response |
62Hz
- 4.2kHz |
|
Sensitivity
(1W/1m) |
99.3dB |
|
Voice
Coil Diameter |
3"
/ 76.2mm |
|
Max. Crossover Frequency |
4.2kHz |
| Rec. Enclosure Volume(Vented) | 1.2-2.2cu. ft./34-62 Liters |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
12.2" / 311.4mm |
| Bolt Circle Diameter | 11.71" / 297.4mm |
| Baffle Cutout Diameter | 11" / 279.4mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter |
0.25" / 6.4mm |
| Overall Depth | 5.63" / 143mm |
| Magnet Weight | 80 oz. |
| Net Weight | 14.9 lbs. / 6.76 kg. |
|
Shipping Weight |
17.9 lbs. / 8.12kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 45 Hz |
|
Impedance
(Re) |
5.41 ohms |
| Coil Inductance (Le) | .77mH |
| Electromagnetic Q (Qes) |
.28 |
| Mechanical Q (Qms) | 7.76 |
| Total Q (Qts) | .27 |
| Compliance Equivalent Vol. (Vas) | 112.1 Liters/3.96 cu. ft. |
| Voice Coil Overhang (Xmax) | 3.2mm |
| Diaphragm Mass (Mms) | 42 Grams |
| BL Factor (BL) | 15.2 T-M |
| Surface Area of Cone (Sd) | .05195 m2 |
|

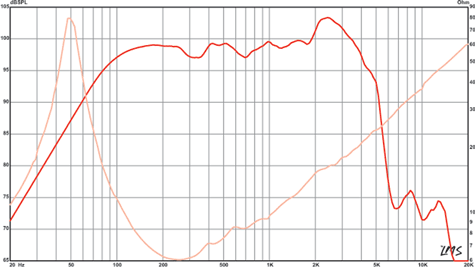

KAPPA-12A FREQUENCY RESPONSE GRAPH |
|
|
|
|
