• NEW IMPROVED POWER HANDLING OF 450 WATTS RMS & 900 WATTS PROGRAM
• THE EMINENCE KAPPA-15A 15" SPEAKER DELIVERS A CLEAN CRISP BASS SOUND
• FEATURES A 3" COPPER VOICE COIL & A HIGH EFFICIENCY OF 100.5DB SPL
• KAPPA-15 A HAS A WIDE FREQUENCY RANGE WITH LOUD MIDRANGE AND STRONG MID TO UPPER BASS
• FOR ALL HIGH POWER BASS APPLICATIONS INCLUDING BASS GUITAR
• 8 OHMS
• KAPPA-15A - PORTED CABINET DIMENSION RANGE: 1.6 - 4.0 CU. FT.

THE EMINENCE KAPPA-15A HAS HIGH EFFICIENCY OF 100.5dB SPL WHICH MEANS YOUR AMP DOES NOT HAVE TO WORK HARD!
EMINENCE	Kappa-15A
Free UPS Ground Shipping in the U.S.	Item Price: $179.99 Free UPS Ground Shipping in the U.S.
WOOFER MODEL	KAPPA-15A
SPECIFICATIONS
Nominal Basket Diameter	15" / 381mm
Impedance	4 or 8 ohms
RMS Power Rating	450 Watts
Program Power Handling	900 Watts
Frequency Response	52Hz - 2.3kHz
Sensitivity (1W/1m)	100.5dB
Voice Coil Diameter	3" / 76.2mm
Max. Crossover Frequency	2.3kHz
MOUNTING INFORMATION
Overall Diameter	15.16" / 385.1mm
Bolt Circle Diameter	14.562" / 369.9mm
Baffle Cutout Diameter	13.87" / 352.3mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.275" / 7mm
Overall Depth	6.13" / 155.7mm
Magnet Weight	80 oz.
Net Weight	17.6 lbs. / 7.98 kg.
Shipping Weight	19.8 lbs. / 8.98kg.
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	33 Hz
Impedance (Re)	5.22 ohms
Coil Inductance (Le)	1.05mH
Electromagnetic Q (Qes)	.33
Mechanical Q (Qms)	8.9
Total Q (Qts)	.32
Compliance Equiv. Vol. (Vas)	321.3 Liters/11.35cu. ft.
Voice Coil Overhang (Xmax)	4.0mm
Diaphragm Mass (Mms)	76 Grams
BL Factor (BL)	15.7 T-M
Surface Area Of Cone (Sd)	.08563 m2

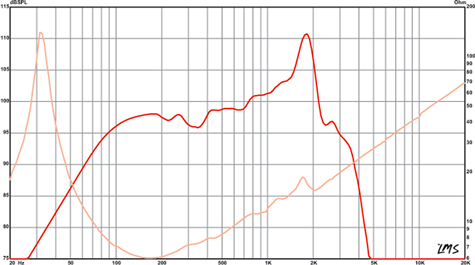

KAPPA-15A FREQUENCY RESPONSE CURVE
