• NEW EMINENCE KAPPA PRO-10LF 10" IS A SPEAKER THAT HANDLES 600 WATTS RMS & 1,200 WATTS PROGRAM
• FEATURES A 3" ALUMINUM VOICE COIL, LARGE 105 OZ. MAGNET, LOW RESONANT FREQUENCY OF 39HZ & A DIE-CAST ALUMINUM FRAME
• WIDE FREQUENCY RANGE FROM 47HZ TO 2KHZ & A HIGH XMAX OF 7.2MM
• GREAT IN BASS GUITAR CABINETS THAT REQUIRE A HIGH POWER DEEP BASS SOUND WITH GOOD MIDS
• THE KAPPA PRO-10LF IS ALSO SUITABLE FOR SOUND REINFORCEMENT SYSTEMS, KEYBOARDS, CLUB MUSIC SYSTEMS AND STAGE MONITORS

WOOFER MODEL	KAPPA PRO-10LF
SPECIFICATIONS
Nominal Basket Diameter	10" / 254mm
Impedance	8 ohms
RMS Power Rating	600 Watts
Program Power Handling	1,200 Watts
Frequency Response	47Hz - 2kHz
Sensitivity (1W/1m)	91.6dB
Voice Coil Diameter	3" / 76.2mm
Max. Crossover Frequency	2kHz
Gap Height	.375" / 9.5mm
Rec. Enclosure Volume(Vented)	.43-1.0cu. ft./12-28 Liters
MOUNTING INFORMATION
Overall Diameter	10.27" / 260.9mm
Bolt Circle Diameter	9.75" / 247.7mm
Baffle Cutout Diameter	9.13" / 231.8mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.28" / 7.1mm
Overall Depth	5" / 127mm
Magnet Weight	105 oz.
Net Weight	17.2 lbs. / 7.8kg.
Shipping Weight	18.3 lbs. / 8.32kg.
MATERIALS
Cone	Paper
Former Material	Polyimide
Voice Coil	Aluminum
Magnet	Ferrite
Core	Vented & Extended
Basket	Die-Cast Aluminum
Surround	Cloth
Dust Cap	Treated Paper
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	39 Hz
Impedance (Re)	5.47 ohms
Coil Inductance (Le)	.97mH
Electromagnetic Q (Qes)	.29
Mechanical Q (Qms)	8.97
Total Q (Qts)	.28
Compliance Equivalent Vol. (Vas)	72.97 Liters/2.58cu. ft.
Voice Coil Overhang (Xmax)	7.2mm
Surface area of Cone (Sd)	.03769 m2

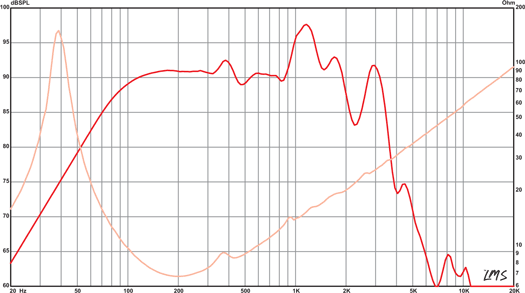

KAPPA PRO-10LF RESPONSE CURVE
