EMINENCE KAPPA PRO-15LF V2  -  15" CAST FRAME WOOFER

 EMINENCE KAPPA PRO-15LF V2 IS A CAST FRAME 15" WOOFER THAT SOUNDS INCREDIBLE IN ANY BASS APPLICATION!

Eminence Kappa Pro-15LF V2Eminence Kappa Pro15LFV2

Buy an Eminence Kappa Pro-15LFA Woofer

Item Price: $209.99

Free UPS Ground Shipping in the U.S.

WOOFER MODEL

KAPPA PRO-15LF V2

SPECIFICATIONS

Nominal Basket Diameter

15" / 381mm

Impedance

8 ohms

RMS Power Rating

600 Watts

Frequency Response

38Hz - 1.8kHz

Sensitivity (1W/1m)

97.8dB

Voice Coil Diameter

3" / 76.2mm

Gap Height .375" / 9.52mm
Magnet Weight   120 oz.
Rec. Enclosure Volume(Vented) 2.7-5.8cu. ft./76.5-164 Liters

MOUNTING INFORMATION

Overall Diameter 15.21" / 386.4mm
Bolt Circle Diameter 14.56" / 369.9mm
Baffle Cutout Diameter 14.0" / 355.5mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.275" / 7mm
Overall Depth 6.57" / 167mm
Shipping Weight 24.8 lbs. / 11.3kg.

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 35 Hz
Impedance (Re) 6.5 ohms
Coil Inductance (Le) 1.4mH
Electromagnetic Q (Qes) .32
Mechanical Q (Qms) 7.3
Total Q (Qts) .30
Compliance Equivalent Vol. (Vas) 198.8 Liters/7.02cu. ft.
Voice Coil Overhang (Xmax) 6.7mm
BL Factor (BL) 21.6 T-M
Surface Area of Cone (Sd) .08563 m2

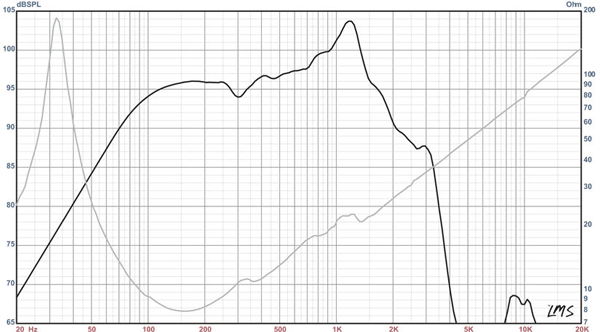

KAPPA PRO-15LFA  RESPONSE CURVE

Eminence Kappa Pro-15LF Cast V2

Build Your Own Cabinets. View Flat Response & Extended Bass Response Designs

Flat Response

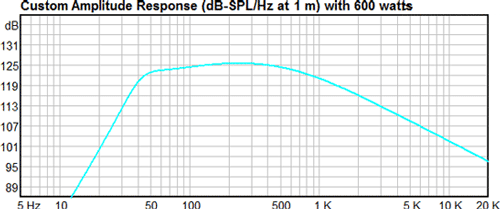

Extended Bass Response

Cabinet Size Port Size Cabinet Tuning F3 (-3dB) Cabinet Size Port Size Cabinet Tuning F3 (-3dB)
4.0 cu. ft. 1.75" H x 18" W x 5.625" D 50Hz 50.69Hz 5.5 cu. ft. 1.75" H x 18" W x 5.875" D 41.85Hz 45.28Hz

Eminence Kappa Pro-15LF Cast V2

Eminence Kappa Pro-15LF V2

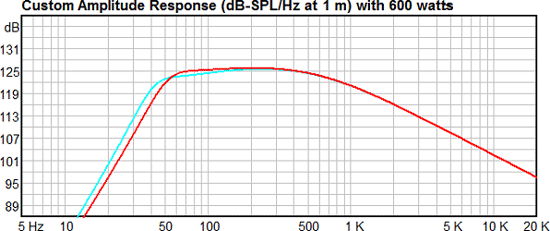

Both Responses Shown Together

Eminence Kappa Pro-15LF Cast V2 Frequency
