EMINENCE KILOMAX PRO-18A - 18" SUBWOOFER
|
|
|
EMINENCE KILOMAX PRO-18A - 18" SUBWOOFER |
|
THE EMINENCE KILOMAX PRO-18A IS A VERY POWERFUL18" WOOFER THAT HANDLES 1,250 WATTS RMS W/ A HIGH XMAX OF 9.8MM! |
|
|
|
Kilomax Pro-18A |
|
8 Ohms
Item Price: $319.99 Free UPS Ground Shipping in the U.S. |
|
|
WOOFER
MODEL |
KILOMAX PRO-18A |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
18"
/ 457.2mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
1,250
Watts |
| Program Power Handling | 2,500 Watts |
|
Frequency
Response |
33Hz
- 300Hz |
|
Sensitivity
(1W/1m) |
95.8dB |
|
Voice
Coil Diameter |
4"
/ 101.6mm |
|
Max. Crossover Frequency |
300Hz |
| Rec. Enclosure Volume(Sealed) | 3.7-6.1cu. ft./105-173 Liters |
| Rec. Enclosure Volume(Vented) | 4.2-10.7cu. ft./119-303 Liters |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 18" / 457.2mm |
| Bolt Circle Diameter | 17.25" / 438.2mm |
| Baffle Cutout Diameter | 16.56" / 420.6mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.275" / 7mm |
| Overall Depth | 8.15" / 207mm |
| Magnet Weight | 109 oz. |
| Shipping Weight | 30.9 lbs. / 14kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 32 Hz |
| Impedance (Re) | 5.07 ohms |
| Coil Inductance (Le) | 1.59mH |
| Electromagnetic Q (Qes) | .49 |
| Mechanical Q (Qms) | 10.15 |
| Total Q (Qts) | .47 |
| Compliance Equivalent Vol. (Vas) | 331.5 Liters/11.7cu. ft. |
| Voice Coil Overhang (Xmax) | 10.0mm |
| BL Factor (BL) | 17.2 T-M |
| Surface Area of Cone (Sd) | .1159 m2 |

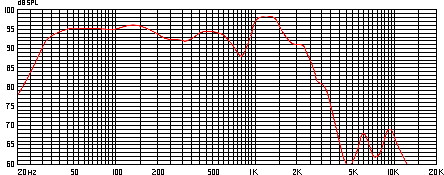

| KILOMAX PRO-18 RESPONSE CURVE | |
 |
|
