LEGEND BP122  -  12" BASS SPEAKER

THE EMINENCE LEGEND BP122 IS SPECIALIZED 12" FOR BASS GUITAR W/ CLEAN BASS DOWN TO 35HZ!

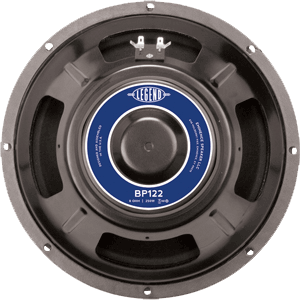

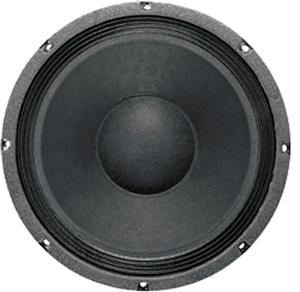

Eminence Legend BP122Eminence Legend BP122 12 inch bass guitar speaker

Free UPS Ground Shipping in the U.S.

LEGEND BP122



Item Price: $139.99

WOOFER MODEL

LEGEND BP122

Specifications

Nominal Basket Diameter 12" / 304.8mm
Impedance 8 ohms
RMS Power Rating 250 Watts
Program Power Rating 500 Watts
Frequency Response 35Hz - 2.3kHz
Sensitivity (1W/1m) SPL 94.1dB
Voice Coil Diameter 2" / 51mm
Gap Height 0.31" / 7.9mm
Rec. Enclosure Volume (Sealed) 1.2-3.61cu. ft./34-102 Liters
Rec. Enclosure Volume (Vented) 2.36-5.15cu. ft./67-146 Liters

Mounting Information

Overall Diameter 12.26" / 311.4mm
Bolt Circle Diameter 11.71" / 297.4mm
Baffle Cutout Diameter 11.08" / 281.4mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.25" / 6.4mm
Overall Depth 5.33" / 135.3mm
MNet Weight 9.0lbs. / 4.8 kg.
Shipping Weight 11.0lbs. / 4.99 kg.

Materials

Basket Type Pressed Steel
Voice Coil Copper
Coil Former Material Polyimide
Cone Paper
Surround Cloth
Dust Cap Solid Composition Felt
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 35 Hz
Impedance (Re) 5.66 ohms
Coil Inductance (Le) 0.84mH
Electromagnetic Q (Qes) .57
Mechanical Q (Qms) 9.26
Total Q (Qts) .54
Compliance Equivalent Vol. (Vas) 157.4 Liters/5.56cu. ft.
Voice Coil Overhang (Xmax) 6.2mm
Diaphragm Mass (Mms) 50 Grams
BL Product (BL) 10.56 T-M
Surface Area Of Cone (Sd) .05324m2

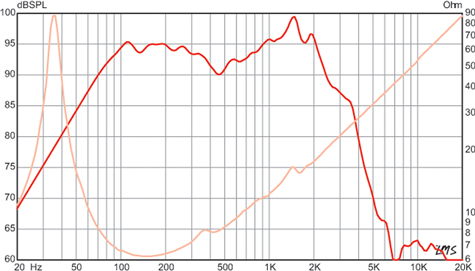

LEGEND BP122 RESPONSE CURVE

Eminence Legend BP122 Frequency
