Genuine Eminence
NEW N151M-8 - 1" LIGHTWEIGHT NEODYMIUM RING RADIATOR HF DRIVER
|
|
|
NEW N151M-8 - 1" LIGHTWEIGHT NEODYMIUM RING RADIATOR HF DRIVER |
|
Weighs only 1.7lbs! |
N151M-8 |
|
Item Price: $94.99 |
|
HF DRIVER MODEL |
N151M-8 |
|
SPECIFICATIONS |
|
|
Horn
Throat Exit Diameter |
1"
/ 25.4mm |
|
Impedance |
8
ohms |
|
Frequency
Response
|
1.8kHz
- 27kHz |
|
Power
Rating @ 1.5kHz
|
45 Watts |
|
Minimum
Cut-off Frequency |
1.8kHz |
|
Sensitivity (1mW @ 1m) |
111.5dB |
|
Voice
Coil Diameter |
1.5"
/ 38.1mm |
|
Magnet
Weight |
4.5 oz. |
|
Mounting Type |
Bolt On |
|
MATERIALS |
|
| Voice Coil Former | Polyimide |
|
Diaphragm
Material |
Mylar |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 3.6" / 91.4 mm |
| Mounting Holes Diameter (1) | (2) 1/4" - 20 on 3" BHC |
| Bolt Circle Diameter | 3" / 76.2 mm |
| Overall Depth | 1.45" / 36.8mm |
| Net Weight | 1.7 lbs. / .77 kg. |
| Shipping Weight | 1.8 lbs. / .82 kg. |
|

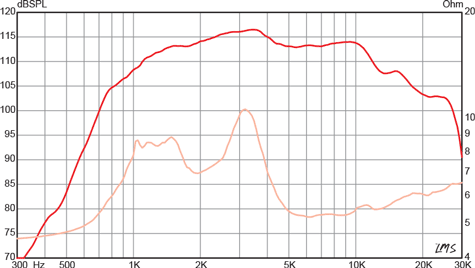

FREQUENCY RESPONSE GRAPH |
|
|
|
|
