NEW N210T - 1" LIGHTWEIGHT PURE TITANIUM HIGH FREQUENCY DRIVER
|
|
|
NEW N210T - 1" LIGHTWEIGHT PURE TITANIUM HIGH FREQUENCY DRIVER |
|
Weighs only 1.7lbs! |
N210T-8 - 8 Ohms
Item Price: $149.99 |
|
N210T-16 - 16 Ohms
Item Price: $149.99 |
|
HF DRIVER MODEL |
N210T |
|
SPECIFICATIONS |
|
|
Horn
Throat Exit Diameter |
1"
/ 25.4mm |
|
Impedance |
8
ohms |
|
|
6.7
ohms |
|
Frequency
Response
|
1.5kHz
- 20kHz |
|
Power
Rating @ 1.5kHz
|
50 Watts |
|
Minimum
Cut-off Frequency |
1.5kHz |
|
Sensitivity (1mW @ 1m) |
108.5dB |
|
Voice
Coil Diameter |
2"
/ 50.8mm |
|
MATERIALS |
|
| Voice Coil Former | Polyimide |
|
Diaphragm
Material |
Pure Titanium |
| Mounting Type | Bolt On |
| Terminals | Faston |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 3.85" / 97.8mm |
| Mounting Holes Diameter (1) | (2) 1/4" - 20 on 3" BHC |
| Bolt Circle Diameter | 3" / 76.2mm |
| Overall Depth | 1.58" / 40.2mm |
| Net Weight | 1.97 lbs. / .89 kg. |
|

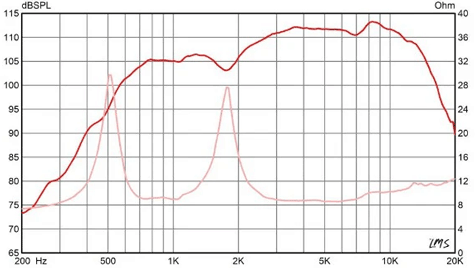

FREQUENCY RESPONSE GRAPH |
|
|
|
|
