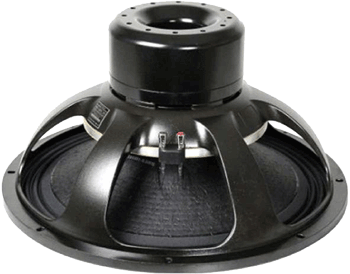

NSW6021-6 TOUR GRADE - 21" NEODYMIUM WOOFER
|
|
|
NSW6021-6 TOUR GRADE - 21" NEODYMIUM WOOFER |
|
THE EMINENCE NSW6021-6 21" WOOFER HAS A SUPER HIGH XMAX OF 21.0MM FOR A TIGHT POWERFUL BASS & HANDLES 5,000 WATTS PROGRAM! |
|
|
Free UPS Ground Shipping in the U.S. |
|
|
NSW6021-6
Item Price: $1,209.99 |
|
|
WOOFER
MODEL |
NSW6021-6 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
21"
/ 533mm |
|
Impedance |
6
ohms
|
|
RMS
Power Rating |
2,500
Watts |
| Program Power Handling | 5,000 Watts |
|
Frequency
Response |
25Hz -
600Hz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
6"
/ 152mm |
|
Max. Crossover Frequency |
600Hz |
| Air Gap Height | .75" / 19mm |
| Recommended Cabinet Volume (Ported) | 5.5 - 17.0 Cu. Ft. / 155.74 - 481.39 Liters |
|
MATERIALS |
|
| Basket | Die Cast Aluminum |
| Cone | Wet Pressed X5 Pulp |
| Former | Fiberglass |
| Dustcap | Wet Pressed X5 Pulp |
| Surround | Advanced Polycotton |
| Motor | Vented |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 21.65" / 549.9mm |
|
Bolt Circle Diameter |
20.67" / 525mm |
|
Baffle
Cutout Diameter |
19.83" / 503.7mm |
|
No.
Of Mounting Holes |
8 |
|
Mounting
Hole Diameter |
0.34" / 8.6mm |
| Overall Depth | 10.39" / 263.9mm |
| Driver Displacement Volume | .37 cu. ft. / 10.72 Liters |
| Net Weight | 48.1 lbs. / 21.82kg. |
| Shipping Weight | 51.6 lbs. / 23.41kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 29 Hz |
|
Impedance
(Re) |
3.8 ohms |
| Coil Inductance (Le) | 1.38mH |
| Electromagnetic Q (Qes) | .31 |
| Mechanical Q (Qms) | 15.35 |
| Total Q (Qts) | .31 |
|
Compliance Equivalent Vol. (Vas) |
224.58 Liters/7.93cu. ft. |
|
Voice Coil Overhang (Xmax) |
21.0mm |
| BL Factor (BL) | 33.79 T-M |
| Diaphragm Mass (Mms) | 508 Grams |
| Surface Area Of Cone (Sd) | .1642 m2 |
| Cone Displacement | 3448.2 cc |

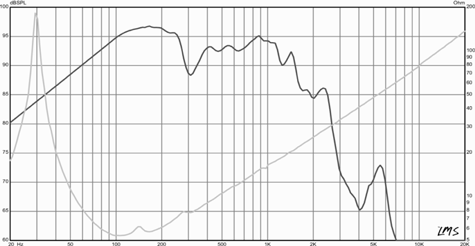

| NSW6021-6 FREQUENCY RESPONSE GRAPH | |
 |
|
