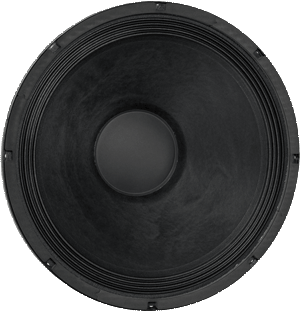

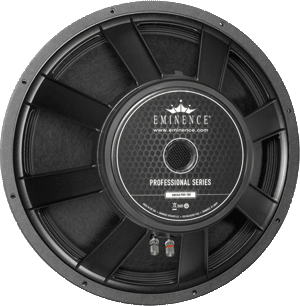

OMEGA PRO-18C - 18" SUBWOOFER SPEAKER
|
|
|
OMEGA PRO-18C - 18" SUBWOOFER SPEAKER |
|
THE EMINENCE OMEGA PRO-18C 18" WOOFER HANDLES 800 WATTS RMS, IS 4 OHMS & HAS A 4" VOICE COIL! |
|
|
Free UPS Ground Shipping in the U.S. |
|
|
No Longer Available. |
|
|
WOOFER
MODEL |
Omega Pro-18C |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
18"
/ 457.2mm |
|
Impedance |
4
ohms
|
|
RMS
Power Rating |
800
Watts |
| Program Power Handling | 1,600 Watts |
|
Frequency
Response |
40Hz -
800Hz |
|
Sensitivity
(1W/1m) |
96.4dB |
|
Voice
Coil Diameter |
4"
/ 101.6mm |
|
Max. Crossover Frequency |
800Hz |
| Rec. Enclosure Volume(Vented) | 3.4-7cu. ft./96-198 Liters |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 18" / 457.2mm |
|
Bolt Circle Diameter |
17.25" / 438.2mm |
|
Baffle
Cutout Diameter |
16.56" / 420.5mm |
|
No.
Of Mounting Holes |
8 |
|
Mounting
Hole Diameter |
0.275" / 7mm |
| Overall Depth | 8.15" / 207mm |
| Magnet Weight |
109
oz. |
| Shipping Weight | 28.9 lbs. / 13.1kg. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 23 Hz |
|
Impedance
(Re) |
2.5 ohms |
| Coil Inductance (Le) | .61mH |
| Electromagnetic Q (Qes) | 6.41 |
| Mechanical Q (Qms) | .29 |
| Total Q (Qts) | .28 |
|
Compliance Equivalent Vol. (Vas) |
639 Liters/22.57cu. ft. |
|
Voice Coil Overhang (Xmax) |
4.8mm |
| Diaphragm Mass (Mms) | 146 Grams |
| BL Factor (BL) | 13.4 T-M |
| Surface Area Of Cone (Sd) | .1159 m2 |

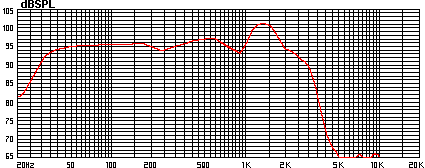

| OMEGA PRO-18C RESPONSE CURVE | |
 |
|
