RF10C - 10" GUITAR SPEAKER
|
|
|
RF10C - 10" GUITAR SPEAKER |
|
THE EMINENCE RF10C 10" SPEAKER HAS A BRITISH TONE WITH AN ABUNDANCE OF HARMONIC DETAIL WITH FULL LOWS AND NICE GRIT & CHIME! |
|
|
|
No Longer Available |
| SPEAKER MODEL | RF10C |
|
SPECIFICATIONS |
|
| Nominal Basket Diameter | 10" / 254mm |
| Impedance | 8 ohms |
| RMS Power Rating | 50 Watts |
| Peak Power Rating | 100 Watts |
| Usable Frequency Response | 80Hz-4.2kHz |
| Voice Coil Diameter | 1.75" / 44mm |
| Sensitivity (1W/1m) | 100.4dB SPL |
| Magnet Weight | 38 oz. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.11" / 256.8mm |
| Bolt Circle Diameter | 9.6" / 243.8mm |
| Baffle Cutout Diameter | 9.13" / 231.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.23" / 5.84mm |
| Overall Depth | 4" / 101.6mm |
| Net Weight | 7.3lbs. / 3.31 kg. |
| Shipping Weight | 8.4lbs. / 3.81 kg. |
|
MATERIALS |
|
| Basket | Die-Cast Aluminum |
| Voice Coil | Copper |
| Coil Former Material | Nomex |
| Core | Non Vented |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Magnet | Ceramic |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 105Hz |
| Impedance (Re) | 5.98 ohms |
| Coil Inductance (Le) | 0.49mH |
| Mechanical Q (Qms) | 15.57 |
| Electromagnetic Q (Qes) | .55 |
| Total Q (Qts) | .53 |
| Compliance Equivalent Vol. (Vas) | 22.33 Liters/0.79cu. ft. |
| Voice Coil Overhang (Xmax) | 0.47mm |
| BL Factor (BL) | 11.74 T-M |
| Surface Area of Cone (Sd) | .03661m2 |
|

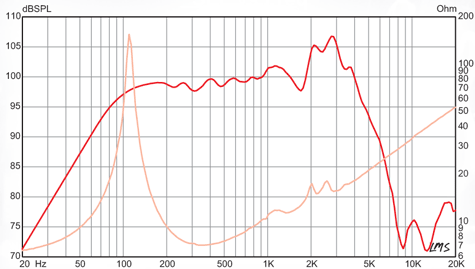

FREQUENCY RESPONSE GRAPH |
|
|
|
|
