SIGMA PRO-18A - 18" WOOFER
|
|
|
SIGMA PRO-18A - 18" WOOFER |
|
THE EMINENCE SIGMA PRO-18A HAS GOOD CLEAN BASS DOWN TO 41HZ & IS AFFORDABLY PRICED! |
|
|
|
Item Price: $249.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
SIGMA
PRO-18 |
|
Specifications |
|
|
Nominal
Basket Diameter |
18" / 457.2mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
650
Watts |
| Program Power Handling | 1,300 Watts |
|
Frequency
Response |
41Hz - 2.4kHz |
|
Sensitivity
(1W/1m) |
99dB |
|
Voice
Coil Diameter |
3" / 76.2mm |
| Max. Crossover Frequency | 2.5kHz |
| Rec. Enclosure Volume(Vented) | 3.3-7.5cu. ft./92-212 Liters |
|
Mounting Information |
|
|
Overall
Diameter |
18" / 457.2mm |
|
Bolt
Circle Diameter |
17.25" / 438.2mm |
| Baffle Cutout Diameter | 16.56" / 420.5mm |
|
No.
Of Mounting Holes |
8 |
| Mounting Hole Diameter | 0.275" / 7mm |
| Overall Depth | 8.15" / 207mm |
| Magnet Weight | 120 oz. |
| Shipping Weight | 28.1 lbs. / 12.8kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 28 Hz |
| Impedance (Re) | 6.29 ohms |
| Coil Inductance (Le) | 1.9mH |
| Electromagnetic Q (Qes) | .3 |
| Mechanical Q (Qms) | 8.28 |
| Total Q (Qts) | .29 |
| Compliance Equivalent Vol. (Vas) | 441.2 Liters/15.58cu. ft. |
| Voice Coil Overhang (Xmax) | 6.1mm |
| BL Factor (BL) | 22.1 T-M |
| Surface Area of Cone (Sd) | .1140 m2 |
|

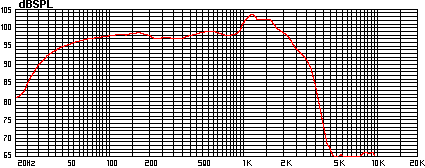

SIGMA PRO-18A RESPONSE CURVE |
|
 |
|
