• NEW FAITAL PRO HF1000 HANDLES A POWERFUL 70 WATTS RMS @ 1.3KHZ  & 140 WATTS PROGRAM POWER @ 1.3KHZ
• FEATURES A LIGHTWEIGHT NEODYMIUM MAGNET, ANNULAR PHASE PLUG & KETONE POLYMER DIAPHRAGM
• PHASE PLUG IS RECESSED FROM THE DRIVER'S EXIT AT THE END OF THE CONICAL ADAPTATION HORN
• HIGH FLUX DENSITY OF 2.1T FOR A SMOOTH CONTROLLED SOUND
• VERY FLAT RESPONSE ACROSS ITS' USABLE FREQUENCY RANGE FOR A MORE ACCURATE SOUND
• VERSATILE ENOUGH FOR HI-END HOME THEATER SYSTEMS & PROFESSIONAL P.A. SYSTEMS, SOUND REINFORCEMENT, ETC.
• AVAILABLE IN 8 OHMS

H.F. DRIVER MODEL  - HF1000
Specifications
Throat Diameter	1" / 25.4mm
Impedance (Re)	5.5 ohms
Impedance	8 ohms
Sensitivity (1W/1m)	110dB SPL
AES Power Handling	70 Watts
Program Power Handling	140 Watts
Frequency Response	1kHz - 18kHz
Recommended Crossover	1.3 kHz @12 dB/oct.
Voice Coil Diameter	2" / 52mm
Winding Depth	0.1" / 2.6mm
Magnetic Gap Depth	0.12" / 3.1mm
Flux Density	2.1T
Phase Plug	Annular
Mounting Information
Overall Diameter	3.54" / 90mm
Overall Depth	1.91" /48.5mm
Mounting	(2) M6 threaded holes 180° apart on 3" diameter
Net Weight	2.2 lb. / .985 kg.
Shipping Weight	2.4 lb. / 1.1 kg.
Materials
Diaphragm	Ketone Polymer
Diaphragm Shape	Dome
Voice Coil	Aluminum
Voice Coil Former	Kapton
Magnet	Neodymium

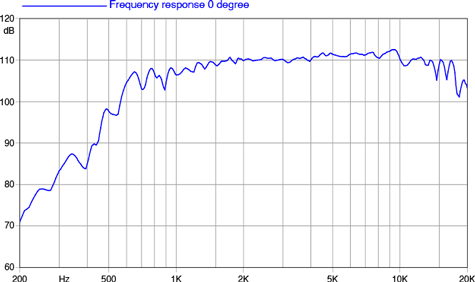

Freq. Response & Distortion Curve - (Mounted On A LTH102 Horn)

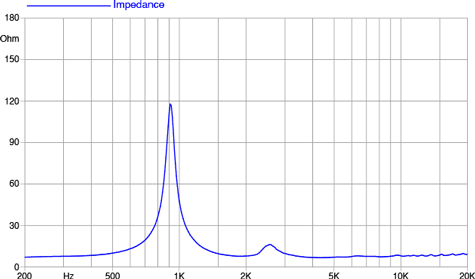

Impedance Curve

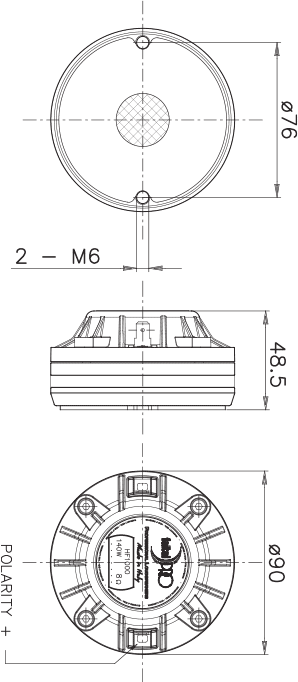

Dimensional Drawing
