FAITAL PRO HF105 - 1" PRO H.F. DRIVER
|
|
|
FAITAL PRO HF105 - 1" PRO H.F. DRIVER |
|
POLYMER DIAPHRAGM ALLOWS FOR A SMOOTH RESPONSE WITH 40 WATTS AES POWER HANDLING! |
|
|
|
FAITAL PRO HF105 |
|
8 Ohm Version
Item Price: $149.95 |
|
|
16 Ohm Version
Item Price: $149.95 |
|
|
RK-HF105-8DIA
$83.95
|
|
|
RK-HF105-16DIA
$83.95
|
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
| Impedance | 8 or 16 ohms |
|
Sensitivity
(1W/1m) |
107dB SPL |
| AES Power Handling | 40 Watts |
| Program Power Handling | 80 Watts |
|
Frequency
Response |
1.4kHz
- 20kHz |
| Recommended Crossover | 1.7 kHz @12 dB/oct. |
| Voice Coil Diameter |
1.46"
/ 37mm |
| Winding Depth | 0.08" / 2.1mm |
| Magnetic Gap Depth | 0.1" / 2.6mm |
| Flux Density | 1.5T |
|
Mounting Information |
|
| Overall Diameter |
3.58" /
91mm |
|
Overall
Depth |
2.4" / 61mm |
| Mounting | (2) M6 threaded holes 180° apart on 3" diameter |
|
Net
Weight |
2.42 lb. / 1.1 kg. |
| Shipping Weight | 2.65 lb. / 1.2 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Diaphragm Shape | Annular |
| Phase Plug Design | Radial |
| Magnet | Ferrite |

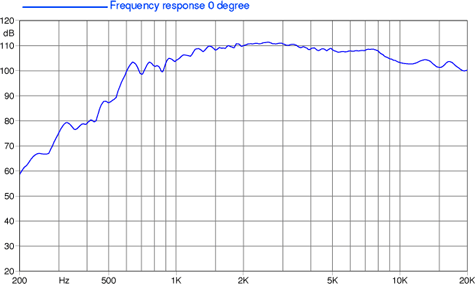

| Frequency Response Curve | |
 |
|

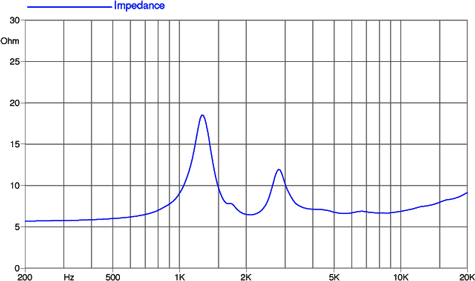

| Impedance Curve | |
 |
|

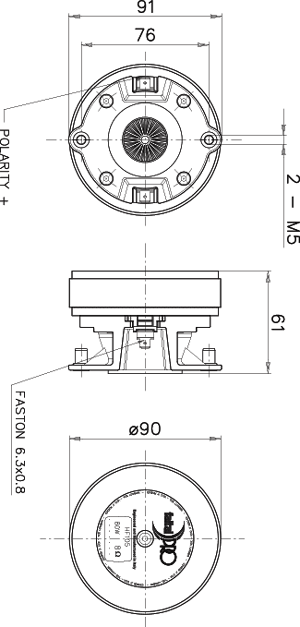

| Dimensional Drawing | |
 |
|
