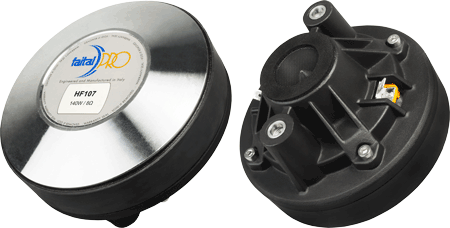

FAITAL PRO HF107 - 1" PRO H.F. DRIVER
|
|
|
FAITAL PRO HF107 - 1" PRO H.F. DRIVER |
|
POLYMER DIAPHRAGM ALLOWS FOR A SMOOTH RESPONSE WITH 140 WATTS AES POWER HANDLING! |
|
|
|
FAITAL PRO HF107 |
|
8 Ohms
Item Price: $209.95 |
|
|
16 Ohms
Item Price: $209.95 |
|
|
RK-HF107-8DIA
$133.95
|
|
|
RK-HF107-16DIA
$133.95
|
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
| Impedance | 8 and 16 ohms |
|
Sensitivity
(1W/1m) |
109dB SPL |
| AES Power Handling | 70 Watts |
| Program Power Handling | 140 Watts |
|
Frequency
Response |
1.3kHz
- 20kHz |
| Recommended Crossover | 1.3kHz @12 dB/oct. |
| Voice Coil Diameter |
1.73"
/ 44mm |
| Winding Depth | 0.09" / 2.3mm |
| Magnetic Gap Depth | 0.1" / 2.6mm |
| Flux Density | 1.9T |
|
Mounting Information |
|
| Overall Diameter |
4.76" /
121mm |
|
Overall
Depth |
2.97" / 75.4mm |
| Mounting | (2) M6 threaded holes 180° apart on 3" diameter |
|
Net
Weight |
5.51 lb. / 2.5 kg. |
| Shipping Weight | 5.84 lb. / 2.65 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Diaphragm Shape | Annular |
| Phase Plug Design | Annular |
| Magnet | Ferrite |

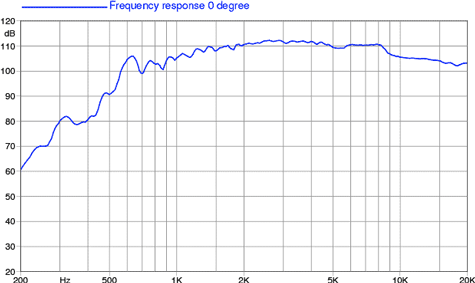

| Frequency Response Curve | |
 |
|

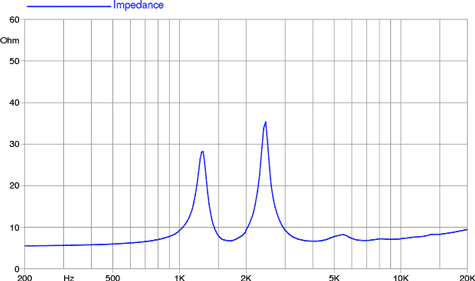

| Impedance Curve | |
 |
|

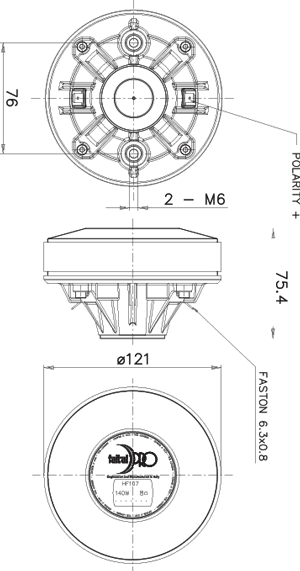

| Dimensional Drawing | |
 |
|
