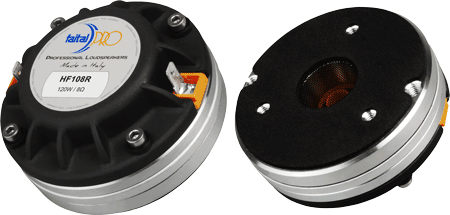

FAITAL PRO HF108R - 1" PRO H.F. DRIVER
|
|
|
FAITAL PRO HF108R - 1" PRO H.F. DRIVER |
|
THE FAITAL PRO HF108R DIAPHRAGM SURROUND HAS TINY SLITS TO OBTAIN A RISING MID-HIGH RESPONSE WHICH PRODUCES LOWER DISTORTION! |
|
|
|
FAITAL PRO HF108R |
|
8 Ohms
Item Price: $220.95 |
|
|
16 Ohms
Item Price: $220.95 |
|
|
RK-HF108R-8DIA
$84.99
|
|
RK-HF108R-16DIA
$84.99
16 ohm diaphragm |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
| Impedance | 8 or 16 ohms |
|
Sensitivity
(1W/1m) |
109dB SPL |
| AES Power Handling | 60 Watts |
| Program Power Handling | 120 Watts |
|
Frequency
Response |
1.0kHz
- 20kHz |
| Recommended Crossover | 1.3kHz @12 dB/oct. |
| Voice Coil Diameter |
1.73"
/ 44mm |
| Winding Depth | 0.09" / 2.3mm |
| Magnetic Gap Depth | 0.1" / 2.85mm |
| Flux Density | 2.1T |
|
Mounting Information |
|
| Overall Diameter |
3.43" /
87mm |
|
Overall
Depth |
1.61" / 41mm |
| Mounting | (2) M6 threaded holes 180° apart on 3" diameter |
| Mounting | (3) M6 threaded holes 120° apart on 2.25" diameter |
|
Net
Weight |
1.8 lb. / .8 kg. |
| Shipping Weight | 2.6 lb. / 1.2 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Aluminum |
| Voice Coil Former | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Terminals | Faston |
| Magnet | Neodymium |

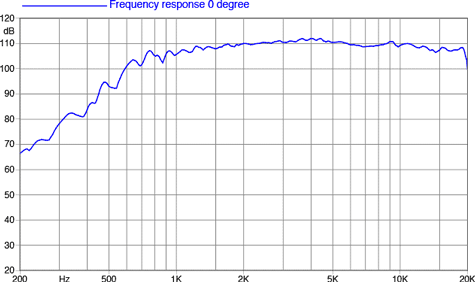

| Frequency Response Curve | |
 |
|

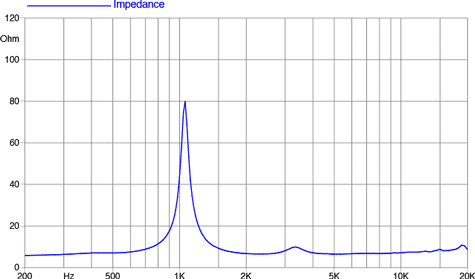

| Impedance Curve | |
 |
|

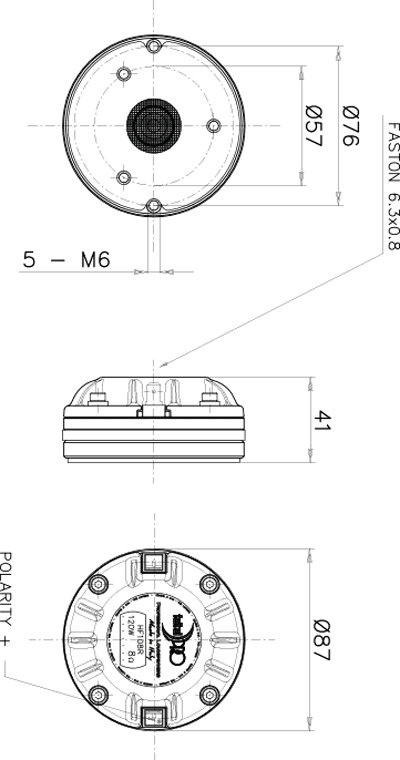

| Dimensional Drawing | |
 |
|
