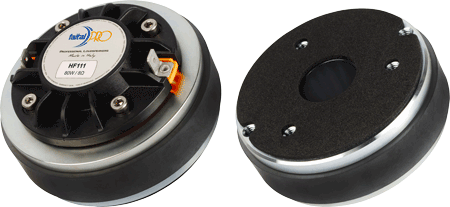

FAITAL PRO HF111 - 1" PRO H.F. DRIVER
|
|
|
FAITAL PRO HF111 - 1" PRO H.F. DRIVER |
|
THE FAITAL PRO HF111 HAS A POLYMER DIAPHRAGM ALLOWS FOR A SMOOTH RESPONSE WITH 40 WATTS AES POWER HANDLING! |
|
|
|
FAITAL PRO HF111 |
|
8 Ohms
Item Price: $114.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
| Impedance | 8 ohms |
|
Sensitivity
(1W/1m) |
107dB SPL |
| AES Power Handling | 40 Watts |
| Program Power Handling | 80 Watts |
|
Frequency
Response |
2.0kHz
- 20kHz |
| Recommended Crossover | 2.0 kHz @12 dB/oct. |
| Voice Coil Diameter |
1.46"
/ 37mm |
| Winding Depth | 0.087" / 2.2mm |
| Magnetic Gap Depth | 0.094" / 2.4mm |
| Flux Density | 1.6T |
|
Mounting Information |
|
| Overall Diameter |
3.54" /
90mm |
|
Overall
Depth |
1.85" / 47mm |
| Mounting | (2) M6 threaded holes 180° apart on 3" diameter |
| Mounting | (3) M6 threaded holes 120° apart on 2.24" diameter |
|
Net
Weight |
2.9 lb. / 1.3 kg. |
| Shipping Weight | 3.2 lb. / 1.45 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Aluminum |
| Voice Coil Former | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Magnet | Ferrite |

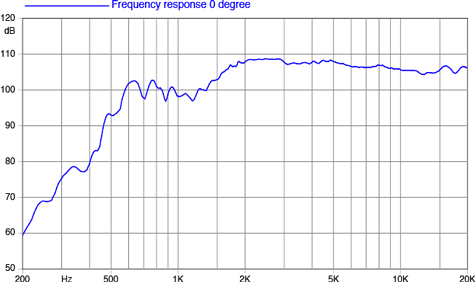

| Frequency Response Curve | |
 |
|

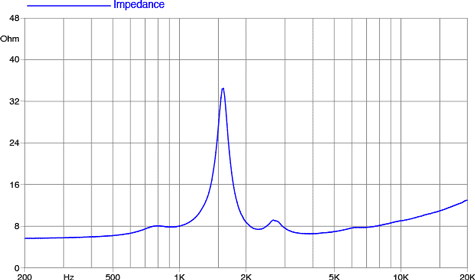

| Impedance Curve | |
 |
|

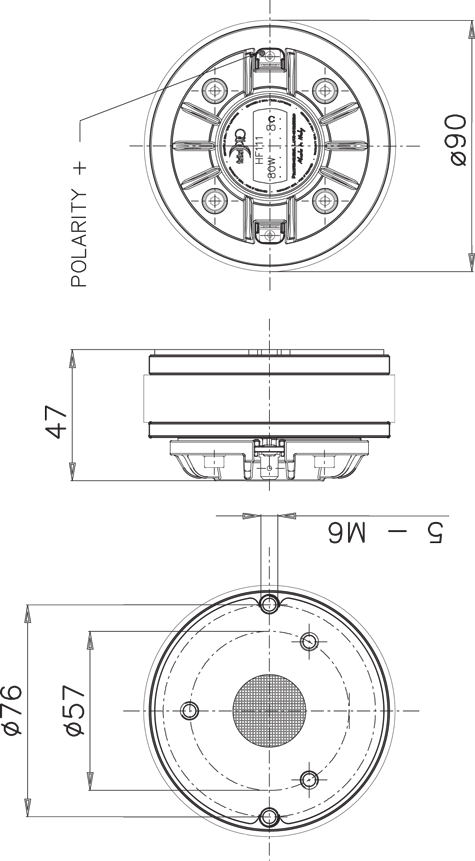

| Dimensional Drawing | |
 |
|
