• THE NEW FAITAL PRO HF1400 1.4" MID-HIGH HF DRIVER HANDLES A POWERFUL 100 WATTS AES @ 900HZ  & 200 WATTS PROGRAM POWER @ 900HZ
• FEATURES A 3" TITANIUM DIAPHRAGM WITH A NEW CLAMPING SYSTEM FOR A SMOOTHER 'LESS RASPY' SOUND
• LIGHTWEIGHT NEODYMIUM MAGNET SYSTEM THAT WEIGHS 5.5LBS.
• FLAT EXTENDED MIDRANGE DOWN TO 500HZ AND SMOOTH HIGHS WITH VERY LOW DISTORTION
• ONLY 2.17" DEEP & 5.14" DIAMETER
• HIGH FLUX DENSITY OF 1.95T & ANNULAR PHASE PLUG FOR OPTIMUM RESPONSE
• DESIGNED FOR HIGH QUALITY PROFESSIONAL P.A. SYSTEMS, SOUND REINFORCEMENT, ETC.
• AVAILABLE IN 8 OHMS

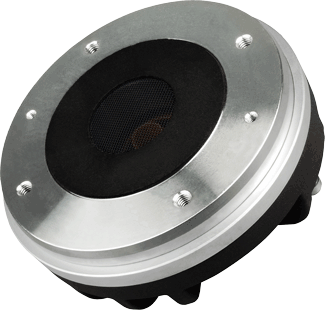

H.F. DRIVER MODEL  - HF1400
Specifications
Throat Diameter	1.4" / 35.6mm
DC Resistance  (Re)	5.6 ohms
Sensitivity (1W/1m)	110dB SPL
Impedance	8 Ohms
AES Power Handling	100 Watts @ 900Hz
Program Power Handling	200 Watts @ 900Hz
Frequency Response	500Hz - 18kHz
Recommended Crossover	900Hz @12 dB/oct.
Voice Coil Diameter	2.91" / 74mm
Winding Depth	0.09" / 2.35mm
Magnetic Gap Depth	0.13" / 3.2mm
Exit Angle	12° conical
Flux Density	1.95T
Mounting Information
Overall Diameter	5.14" / 130.5mm
Overall Depth	2.17" / 55mm
Mounting	(4) M6 threaded holes 90° apart on 4" diameter
Net Weight	5.5 lb. / 2.5 kg.
Shipping Weight	6.0 lb. / 2.7 kg.
Materials
Diaphragm	Titanium
Voice Coil	Aluminum
Voice Coil Former	Kapton
Diaphragm Shape	Dome
Phase Plug Design	Annular
Magnet	Neodymium

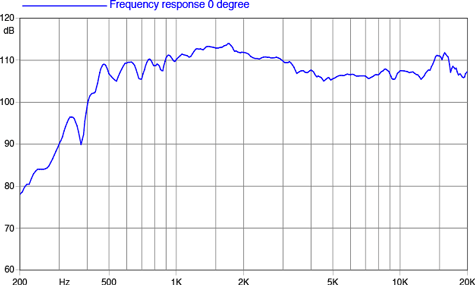

Freq. Response & Distortion Curve
Impedance Curve
Dimensional Drawing
