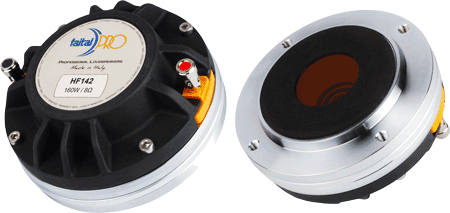

FAITAL PRO HF142 - 1.4" NEODYMIUM H.F. DRIVER
|
|
|
FAITAL PRO HF142 - 1.4" NEODYMIUM H.F. DRIVER |
|
KETONE POLYMER DIAPHRAGM DELIVERS A VERY SMOOTH SOUND W/ VERY LOW DISTORTION & IS ONLY 2.15" DEEP! |
|
|
|
FAITAL PRO HF142 |
|
8 Ohms
Item Price: $329.95 |
|
|
16 Ohms
Item Price: $329.95 |
|
|
RK-HF142-8DIA
$173.95
|
|
RK-HF142-16DIA
$173.95
16 ohm diaphragm |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
| Nominal Impedance | 8 or 16 ohms |
| Impedance (Re) | 6.7 or 13.4 ohms |
| Sensitivity (1W/1m) | 110dB SPL |
| Impedance | 8 Ohms |
| AES Power Handling | 80 Watts @ 900Hz |
| Program Power Handling | 160 Watts @ 900Hz |
|
Frequency
Response |
700Hz
- 18kHz |
| Recommended Crossover | 900Hz @12 dB/oct. |
| Voice Coil Diameter |
2.56"
/ 65mm |
| Winding Depth | 0.08" / 2.1mm |
| Magnetic Gap Depth | 0.17" / 4.2mm |
| Flux Density | 1.8T |
|
Mounting Information |
|
| Overall Diameter |
4.53" /
115mm |
|
Overall
Depth |
2.15" / 54.5mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter |
|
Net
Weight |
3.6 lb. / 1.64 kg. |
| Shipping Weight | 4.3 lb. / 1.95 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Exit Angle | 29° Conical |
| Magnet | Neodymium |

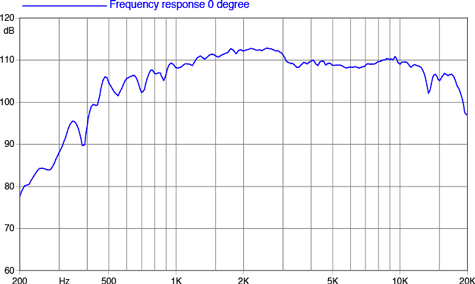

| Frequency Response | |
 |
|

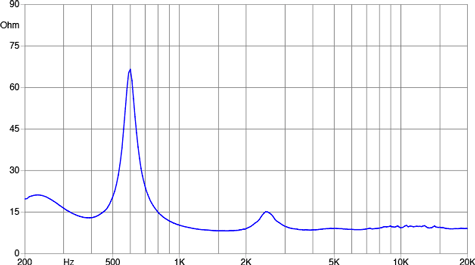

| Impedance Curve | |
 |
|

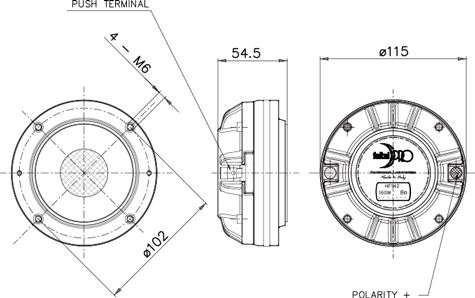

| Dimensional Drawing | |
 |
|
