• THE NEW FAITAL PRO HF1440 1.4" MID-HIGH HF DRIVER HANDLES A POWERFUL 120 WATTS AES @ 900HZ  & 240 WATTS PROGRAM POWER @ 900HZ
• FEATURES A 3.4" KETONE POLYMER DIAPHRAGM FOR A SMOOTHER 'LESS RASPY' SOUND
• LIGHTWEIGHT NEODYMIUM MAGNET SYSTEM THAT WEIGHS 4.5LBS.
• FLAT EXTENDED MIDRANGE DOWN TO 500HZ AND SMOOTH HIGHS WITH VERY LOW DISTORTION
• ONLY 3" DEEP & 4.9" DIAMETER
• HIGH FLUX DENSITY OF 2.2T & RADIAL PHASE PLUG FOR OPTIMUM RESPONSE
• DESIGNED FOR HIGH QUALITY PROFESSIONAL P.A. SYSTEMS, SOUND REINFORCEMENT, ETC.
• AVAILABLE IN 8 OHMS

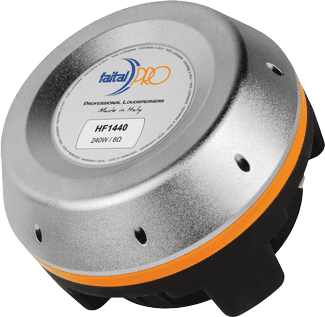

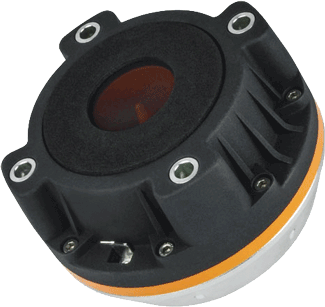

H.F. DRIVER MODEL  - HF1440
Specifications
Throat Diameter	1.4" / 35.6mm
DC Resistance  (Re)	6.8 ohms
Sensitivity (1W/1m)	109dB SPL
Impedance	8 Ohms
AES Power Handling	120 Watts @ 900Hz
Program Power Handling	240 Watts @ 900Hz
Frequency Response	500Hz - 20kHz
Recommended Crossover	700Hz @12 dB/oct.
Voice Coil Diameter	3.4" / 86mm
Winding Depth	0.14" / 3.6mm
Magnetic Gap Depth	0.16" / 4mm
Flux Density	2.2T
Mounting Information
Overall Diameter	4.9" / 124mm
Overall Depth	3" / 75mm
Mounting	(4) M6 threaded holes 90° apart on 4" diameter
Net Weight	4.5 lb. / 2.1 kg.
Shipping Weight	5.3 lb. / 2.4 kg.
Materials
Diaphragm	Ketone Polymer
Voice Coil	Aluminum
Voice Coil Former	Kapton
Diaphragm Shape	Annular
Phase Plug Design	Radial
Magnet	Neodymium

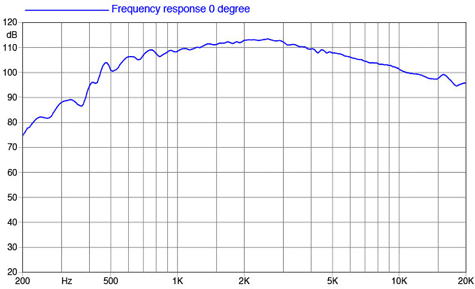

Freq. Response & Distortion Curve

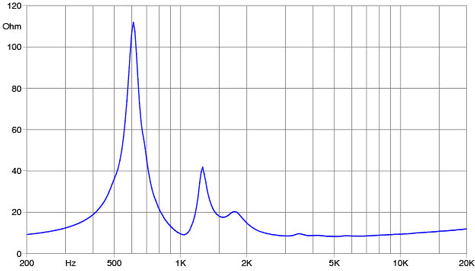

Impedance Curve

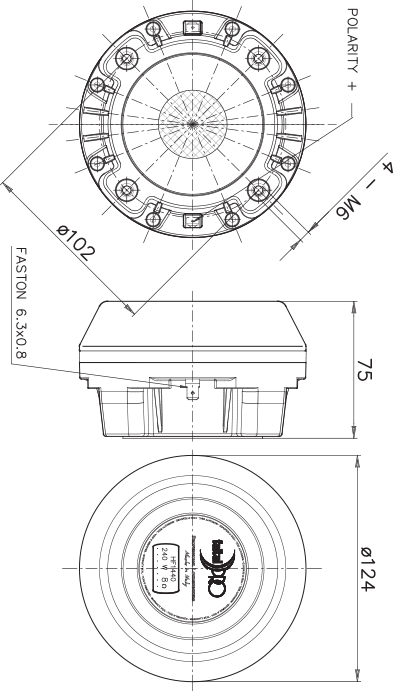

Dimensional Drawing
