• THE NEW FAITAL PRO HF1460 1.4" HIGH FREQUENCY DRIVER HANDLES A POWERFUL 120 WATTS AES @ 1KHZ  & 240 WATTS PROGRAM POWER @ 1KHZ
• FEATURES A 3.4" CARBON FIBER DOME DIAPHRAGM FOR A SMOOTHER 'LESS RASPY' SOUND
• NEWLY DESIGNED 4-SLIT PHASE PLUG FOR OPTIMIZED HIGH FREQUENCY EXTENSION
• HIGH MOTOR STRENGTH WITH 2.2T THANKS TO ITS' HIGH GRADE LIGHTWEIGHT NEODYMIUM MAGNET
• VERY LOW DISTORTION & EXCELLENT LINEARITY
• DESIGNED FOR HIGH QUALITY PROFESSIONAL P.A. SYSTEMS, SOUND REINFORCEMENT, HOME HI-FI, ETC.
• AVAILABLE IN 8 OHMS

H.F. DRIVER MODEL  - HF1460
Specifications
Throat Diameter	1.4" / 35.6mm
DC Resistance  (Re)	5.6 ohms
Sensitivity (1W/1m)	109dB SPL
Impedance	8 Ohms
AES Power Handling	120 Watts @ 900Hz
Program Power Handling	240 Watts @ 900Hz
Frequency Response	600Hz - 18kHz
Recommended Crossover	1kHz @12 dB/oct.
Voice Coil Diameter	3.4" / 86mm
Winding Depth	0.13" / 3.4mm
Magnetic Gap Depth	0.16" / 4mm
Flux Density	2.2T
Mounting Information
Overall Diameter	4.7" / 120mm
Overall Depth	2.6" / 65mm
Mounting	(4) M6 threaded holes 90° apart on 4" diameter
Net Weight	4.5 lb. / 2.0 kg.
Shipping Weight	4.6 lb. / 2.1 kg.
Materials
Diaphragm	Carbon Fiber
Voice Coil Winding	Aluminum
Voice Coil Former	Kapton
Diaphragm Shape	Dome
Phase Plug	4 Slit Type
Phase Plug Design	Annular
Phase Plug Exit Angle	Cylindrical
Magnet	Neodymium

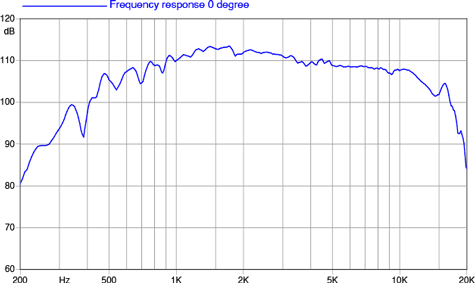

Frequency Response Graph

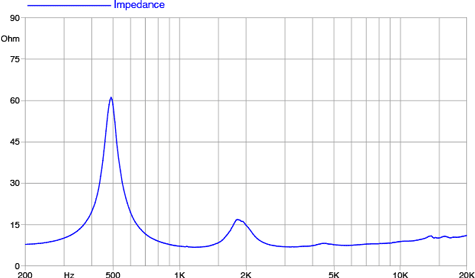

Impedance Curve

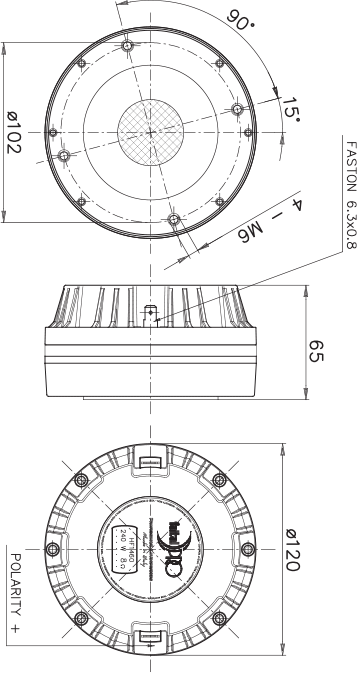

Dimensional Drawing
