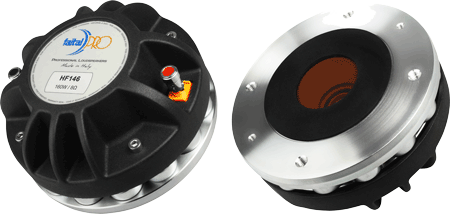

FAITAL PRO HF146R - 1.4" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF146R - 1.4" PRO NEO H.F. DRIVER |
|
HF146R HAS A RISING MID RESPONSE, KETONE POLYMER DIAPHRAGM, A VERY SMOOTH SOUND & LOW DISTORTION! |
|
|
|
FAITAL PRO HF146R |
|
8 Ohms
Item Price: $304.95 |
|
|
16 Ohms
Item Price: $304.95 |
|
|
RK-HF146R-8DIA
$173.99
|
|
RK-HF146R-16DIA
$173.99
16 ohm diaphragm |
|
|
H.F. DRIVER MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
| Impedance | 8 or 16 ohms |
| Sensitivity (1W/1m) | 109dB SPL |
| Impedance | 8 Ohms |
| AES Power Handling | 80 Watts @ 900Hz & 40 Watts @ 650Hz |
| Program Power Handling | 160 Watts @ 900Hz & 80 Watts @ 650Hz |
|
Frequency Response |
700Hz
- 18kHz |
| Recommended Crossover | 900Hz @12 dB/oct. |
| Voice Coil Diameter |
2.56" / 65mm |
| Re | 5.5 Ohms |
| Winding Depth | 0.12" / 3mm |
| Magnetic Gap Depth | 0.17" / 4.2mm |
| Flux Density | 1.7T |
|
Mounting Information |
|
| Overall Diameter |
4.84" /
123mm |
|
Overall
Depth |
4.02" / 102mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter |
|
Net
Weight |
4.4 lb. / 2.0 kg. |
| Shipping Weight | 5.07 lb. / 2.3 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Magnet | Neodymium |

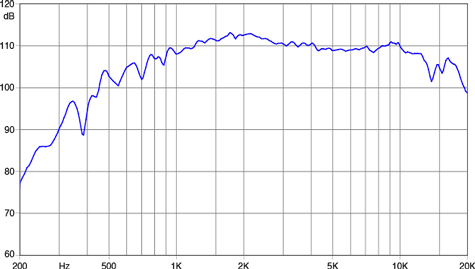

| Frequency Response | |
 |
|

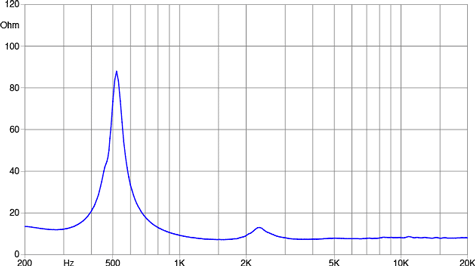

| Impedance Curve | |
 |
|

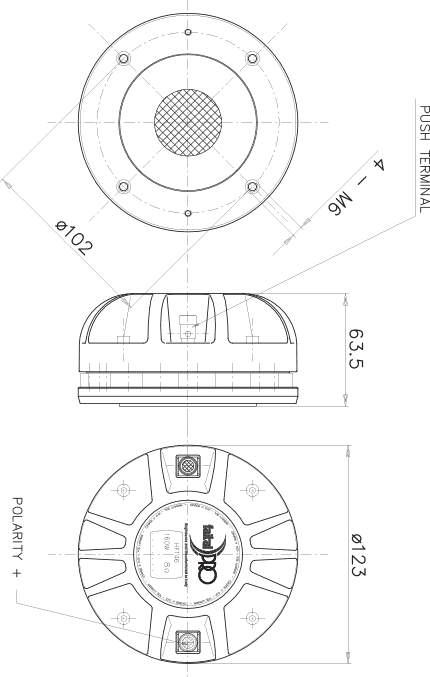

| Dimensional Drawing | |
 |
|
