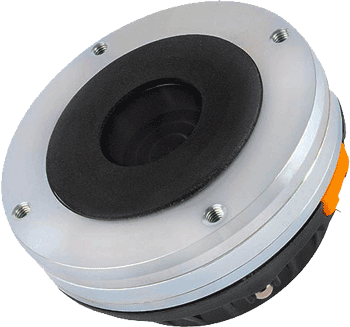

FAITAL PRO HF148C - 1.4" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF148C - 1.4" PRO NEO H.F. DRIVER |
|
THE FAITAL PRO HF148C HAS A TITANIUM DIAPHRAGM THAT HAS CLEAN STRONG MIDS W/ A NICE SMOOTH TOP END! |
|
|
|
FAITAL PRO HF148C |
|
8 Ohms
Item Price: $449.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
| Impedance | 8 ohms |
| Sensitivity (1W/1m) | 110dB SPL |
| Impedance | 8 Ohms |
| AES Power Handling | 100 Watts @ 900Hz & 50 Watts @ 650Hz |
| Program Power Handling | 200 Watts @ 900Hz & 100 Watts @ 650Hz |
|
Frequency
Response |
600Hz
- 18kHz |
| Recommended Crossover | 900Hz @12 dB/oct. |
| Voice Coil Diameter |
2.91"
/ 74mm |
| Winding Depth | 0.14" / 3.5mm |
| Magnetic Gap Depth | 0.17" / 4.2mm |
| Flux Density | 1.75T |
|
Mounting Information |
|
| Overall Diameter |
4.6" /
116mm |
|
Overall
Depth |
2.17" / 55mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter |
|
Net
Weight |
4.1 lb. / 1.9 kg. |
| Shipping Weight | 4.4 lb. / 2 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Aluminum |
| Voice Coil Former | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug | Annular |
| Exit Angle | 15° Conical |
| Magnet | Neodymium |

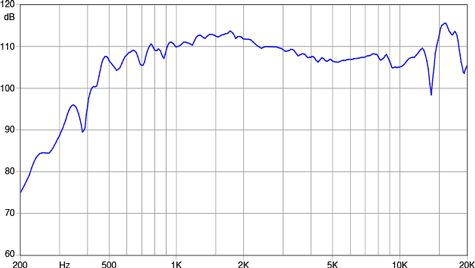

| Frequency Response | |
 |
|

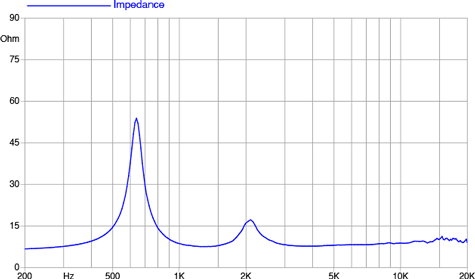

| Impedance Curve | |
 |
|

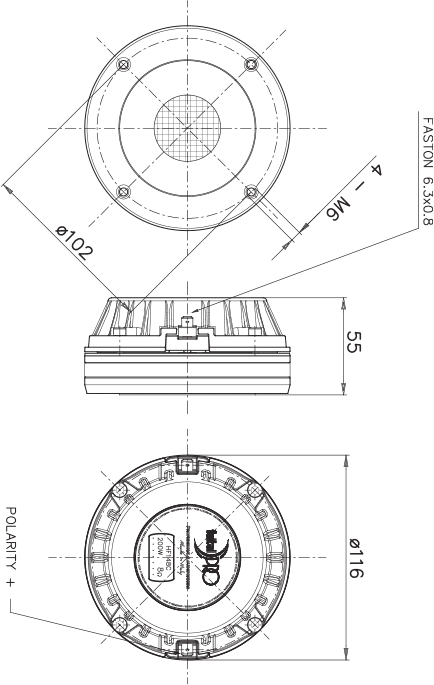

| Dimensional Drawing | |
 |
|
