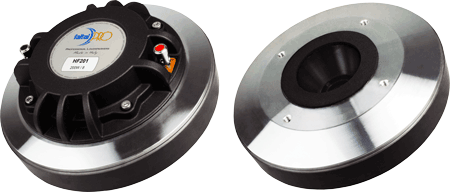

FAITAL PRO HF201 - 2" HIGH FREQUENCY DRIVER
|
|
|
FAITAL PRO HF201 - 2" HIGH FREQUENCY DRIVER |
|
TITANIUM DIAPHRAGM DELIVERS A CRISP HIGHS & STRONG MIDS W/ VERY LOW DISTORTION & WEIGHS 7.05 LBS! |
|
|
|
FAITAL PRO HF201 |
|
Item Price: $362.95 |
|
|
RK-HF14AT/20AT/140/200-8DIA
- $173.99
|
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Sensitivity
(1W/1m) |
108dB SPL |
| AES Power Handling | 100 Watts |
| Program Power Handling | 200 Watts |
|
Frequency
Response |
500Hz
- 18kHz |
| Recommended Crossover | 900Hz @12 dB/oct. |
| Voice Coil Diameter |
2.91"
/ 74mm |
| Winding Depth | 0.09" / 2.35mm |
| Magnetic Gap Depth | 0.13" / 3.2mm |
| Flux Density | 1.7T |
| D.C. Resistance | 5.6 Ohms |
| Exit Angle | 36° Conical |
|
Mounting Information |
|
| Overall Diameter |
6.69" /
170mm |
|
Overall
Depth |
2.6" / 66mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter |
|
Net
Weight |
10.2 lb. / 4.6 kg. |
| Shipping Weight | 10.6 lb. / 4.8 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Aluminum |
| Voice Coil Former | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug | Annular |
| Terminals | Push Button |
| Magnet | Ferrite |

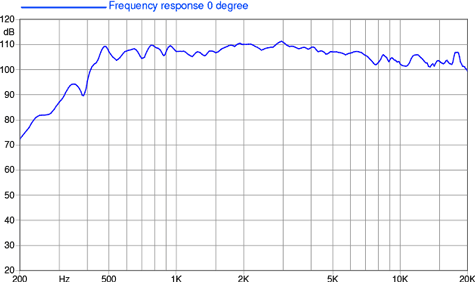

| Frequency Response Curve | |
 |
|

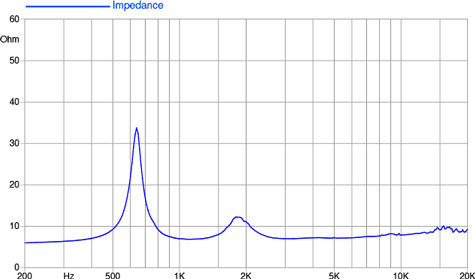

| Impedance Curve | |
 |
|

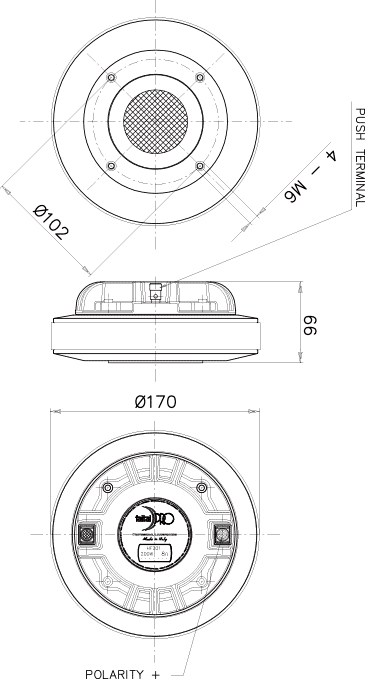

| Dimensional Drawing | |
 |
|
