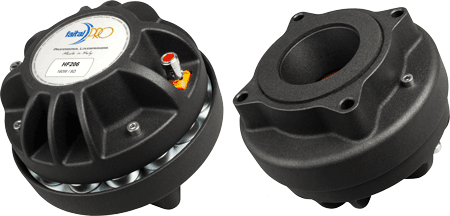

FAITAL PRO HF206 - 2" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF206 - 2" PRO NEO H.F. DRIVER |
|
KETONE POLYMER DIAPHRAGM DELIVERS AN ACCURATE SMOOTH SOUND W/ VERY LOW DISTORTION & WEIGHS 5.26 LBS! |
|
|
|
FAITAL PRO HF206 |
|
8 Ohms
Item Price: $333.95 |
|
|
16 Ohms
Item Price: $333.95 |
|
|
RK-HF144/146/204/206-8DIA
$173.99
|
|
RK-HF144/146/204/206-16DIA
$173.99
16 ohm diaphragm |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Sensitivity
(1W/1m) |
109dB SPL |
| AES Power Handling | 80 Watts @ 900Hz |
| AES Power Handling | 45 Watts @ 650Hz |
| Program Power Handling | 160 Watts @ 900Hz |
| Program Power Handling | 90 Watts @ 650Hz |
|
Frequency
Response |
500Hz
- 18kHz |
| Recommended Crossover | 900Hz @12 dB/oct. |
| Voice Coil Diameter |
2.56"
/ 65mm |
| Winding Depth | 0.12" / 3.0mm |
| Magnetic Gap Depth | 0.17" / 4.2mm |
| Flux Density | 1.7T |
|
Mounting Information |
|
| Overall Diameter |
5.14" /
130.5mm |
|
Overall
Depth |
3.6" / 91.5mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter |
|
Net
Weight |
5.73 lb. / 2.6 kg. |
| Shipping Weight | 6.39 lb. / 2.9 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Aluminum |
| Voice Coil Former | Kapton |
| Phase Lug Design | Annular |
| Magnet | Neodymium |

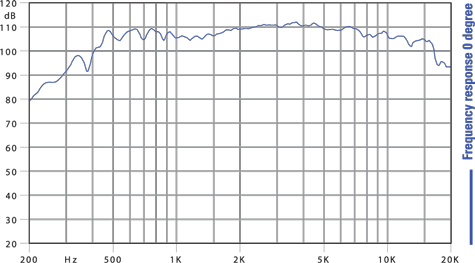

| Freq. Response & Distortion Curve - (Mounted On A 2" 90° x 40° Horn) | |
 |
|

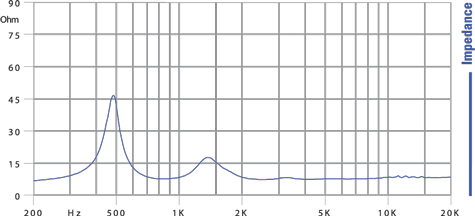

| Impedance Curve | |
 |
|

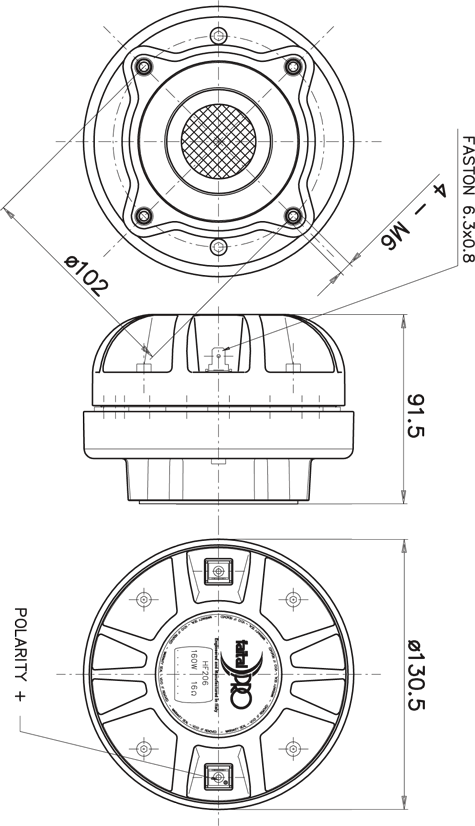

| Dimensional Drawing | |
 |
|
