• THE FAITAL PRO HMF200 2" EXIT MIDRANGE DRIVER HANDLES A 40 WATTS AES & 80 WATTS PROGRAM POWER
• FEATURES A UNIQUE DOUBLE EDGE PAPER DIAPHRAGM FOR A NATURAL HI-FI SOUND W/ AMAZING DETAIL IN THE VOCALS
• LIGHTWEIGHT NEODYMIUM MAGNET SYSTEM THAT WEIGHS 3.6 LBS.
• LOW DISTORTION & FLAT FREQUENCY RESPONSE FROM 450HZ UP TO 9KHZ
• HIGH FLUX DENSITY OF 2.1T FOR A PRECISE ACCURATE CONTROLLED MIDRANGE
• DESIGNED FOR DETAILED LOW DISTORTION MIDRANGE SPEAKER SYSTEMS FOR HI-FI SPEAKERS, STUDIO MONITORS, ETC
• AVAILABLE IN 8 OHMS ONLY

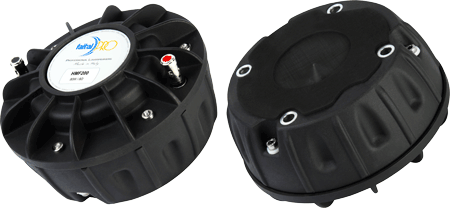

H.F. DRIVER MODEL  - HMF200
Specifications
Throat Diameter	2" / 50.8mm
Impedance	8 ohms
Sensitivity (1W/1m)	108dB SPL
AES Power Handling	40 Watts
Program Power Handling	80 Watts
Frequency Response	450Hz - 9kHz
Recommended Crossover	450Hz
Voice Coil Diameter	1.46" / 37mm
Winding Depth	0.1" / 2.6mm
Magnetic Gap Depth	0.14" / 3.6mm
Flux Density	2.1T
Mounting Information
Overall Diameter	5.67" / 144mm
Overall Depth	3.03" / 77mm
Mounting	(4) M6 threaded holes 90° apart on 4" diameter
Net Weight	3.6 lb. / 1.65 kg.
Shipping Weight	4.2 lb. / 1.9 kg.
Materials
Diaphragm	Paper
Diaphragm Shape	Double Edge Cone
Voice Coil	Aluminum
Voice Coil Former	Kapton
Phase Plug	Annular
Magnet	Neodymium

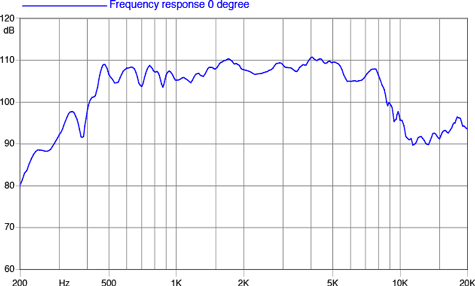

Freq. Response Graph

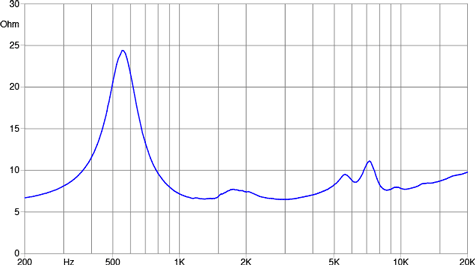

Impedance Curve

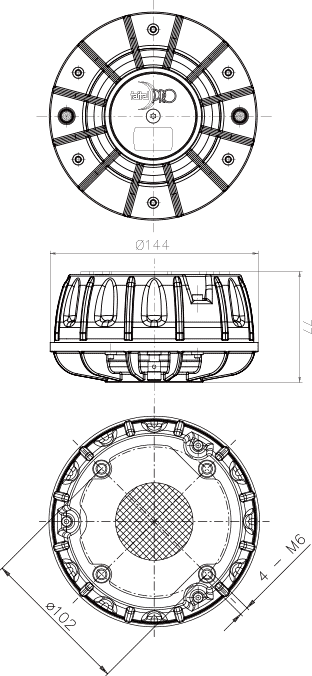

Dimensional Drawing
